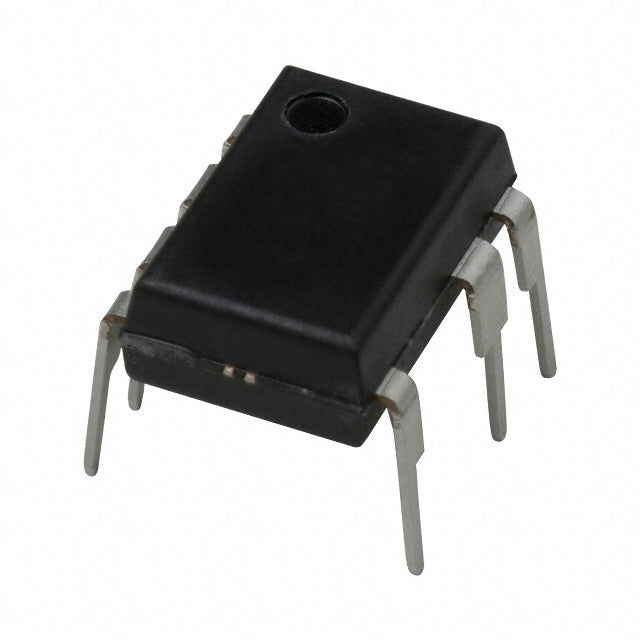

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
FSL336LRDN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,897.19 AED | Dhs. 355,897.19 AED |
| 15+ | Dhs. 344,658.33 AED | Dhs. 5,169,874.95 AED |
| 25+ | Dhs. 337,165.76 AED | Dhs. 8,429,144.00 AED |
| 50+ | Dhs. 318,434.33 AED | Dhs. 15,921,716.50 AED |
| 100+ | Dhs. 280,971.47 AED | Dhs. 28,097,147.00 AED |
| N+ | Dhs. 56,194.29 AED | Price Inquiry |
Couldn't load pickup availability
onsemi FSL336LRDN - 650V Offline Switching Controller IC
The FSL336LRDN from onsemi is a high-performance offline switching controller IC designed for non-isolated AC-DC power conversion applications up to 20W. This versatile controller supports multiple topologies including Buck, Buck-Boost, and Flyback configurations, making it ideal for industrial power supplies, LED drivers, and auxiliary power systems.
Key Features & Benefits
- 650V High-Voltage Breakdown - Robust design for direct AC line operation
- 20W Power Handling - Optimized for low to medium power applications
- Multi-Topology Support - Buck, Buck-Boost, and Flyback configurations
- Comprehensive Protection - Current limiting, over-load, over-temperature, over-voltage, and open-loop protection
- 50kHz Switching Frequency - Balanced efficiency and component size
- Low Start-Up Voltage - 8V start-up for quick initialization
- Soft Start & Enable Control - Smooth power-up and system control
- Wide Operating Temperature - -40°C to 125°C (TJ) for industrial applications
Target Applications
- Industrial AC-DC power supplies
- LED lighting drivers and ballasts
- Auxiliary and standby power systems
- Home appliance power modules
- Smart meter and IoT device power
- Telecom and networking equipment
Why Choose FSL336LRDN?
The FSL336LRDN delivers reliable, cost-effective power conversion with onsemi's proven quality and long lifecycle support. Its integrated protection features reduce external component count, while the through-hole 7-DIP package ensures easy prototyping and manufacturing. RoHS compliant for global regulatory compliance.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 8 V |
| Voltage - Supply (Vcc/Vdd) | 26V |
| Duty Cycle | - |
| Frequency - Switching | 50kHz |
| Power (Watts) | 20 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | EN, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
