onsemi FSQ0765RWDTU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.60 | Dhs. 3.60 |
| 15+ | Dhs. 3.48 | Dhs. 52.20 |
| 25+ | Dhs. 3.40 | Dhs. 85.00 |
| 50+ | Dhs. 3.21 | Dhs. 160.50 |
| 100+ | Dhs. 2.84 | Dhs. 284.00 |
| N+ | Dhs. 0.57 | Price Inquiry |
Request Quote / Inquiry

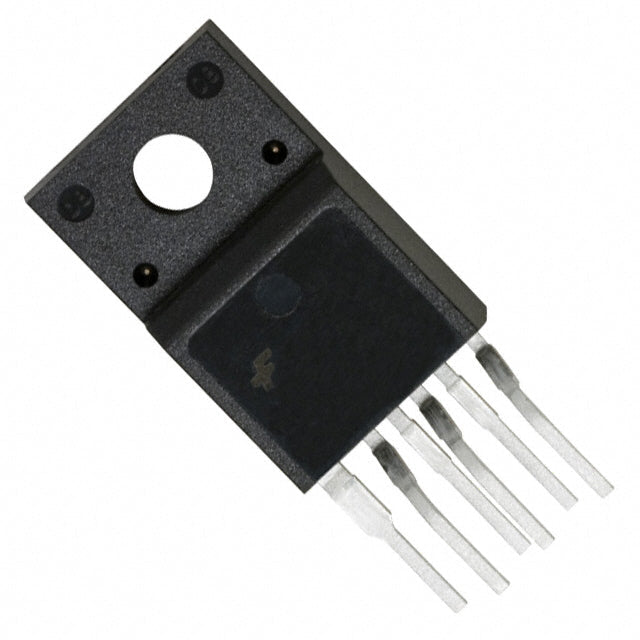

onsemi FSQ0765RWDTU - 650V Flyback Switching Regulator IC
The FSQ0765RWDTU is a high-performance isolated flyback switching regulator from onsemi, designed for AC-DC offline power conversion applications up to 70W. This integrated power switch IC features a 650V breakdown voltage and operates at switching frequencies between 48kHz and 67kHz, making it ideal for compact, efficient power supply designs in industrial, telecom, and consumer electronics applications.
Key Features & Benefits:
- High Voltage Capability: 650V breakdown voltage for reliable operation in universal AC input applications
- Integrated Protection: Comprehensive fault protection including current limiting, overload, over-temperature, over-voltage, and short circuit protection
- Wide Operating Range: Supply voltage range of 8V to 20V with 12V start-up voltage
- Flexible Design: Synchronization control features for multi-output or parallel configurations
- Robust Performance: Operating temperature range of -25°C to 85°C for demanding environments
- Easy Integration: Through-hole TO-220F-6L package with formed leads for simplified PCB assembly
Typical Applications:
- AC-DC power adapters and chargers
- Auxiliary power supplies for industrial equipment
- Telecom and networking infrastructure
- Home appliances and consumer electronics
- LED lighting drivers
- Battery charging systems
Quality & Compliance: This component is sourced through authorized distribution channels with full traceability and RoHS/REACH compliance documentation. Long lifecycle commitment ensures availability for design-in and production requirements across aerospace, automotive, industrial, medical, and telecom applications.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | 48kHz ~ 67kHz |
| Power (Watts) | 70 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Sync |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (Forming) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
