Bridgetek Pte Ltd. FT907Q-C-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.91 | $30.91 |
| 15+ | $7.11 | $106.65 |
| 25+ | $6.96 | $174.00 |
| 50+ | $6.57 | $328.50 |
| 100+ | $5.80 | $580.00 |
| N+ | $1.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Bridgetek Pte Ltd. |
| Product Series | FT90x |
| Packaging | Tray | NULL |
| Core Processor | FT32 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, I2C, SPI, UART/USART, USB |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 42 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V |
| Data Converters | A/D 4x10b; D/A 2x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

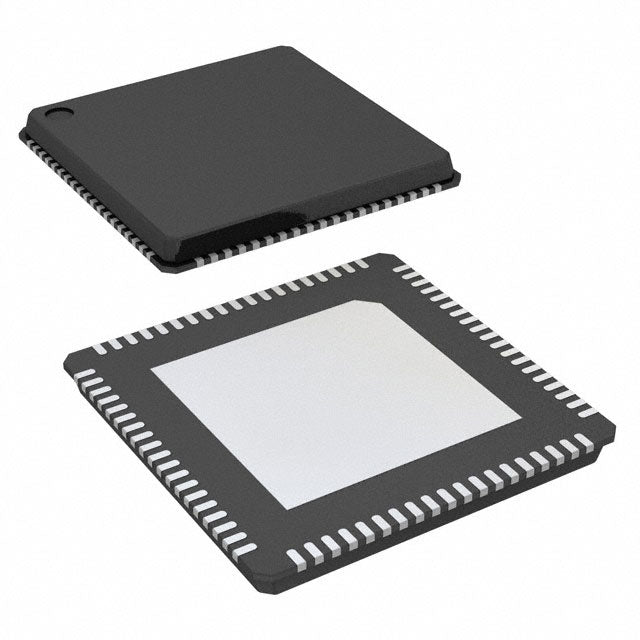

| Supplier Device Package | 76-QFN (9x9) |
| Package / Case | 76-VFQFN Exposed Pad |
The Bridgetek FT907Q-C-T is a 32-bit microcontroller featuring the FT32 RISC core at 100MHz. It provides 256KB flash and a generous 320KB RAM, along with PWM, POR, and watchdog timer. Operating from 2.97V to 3.63V in a 76-VFQFN package, it is optimized for embedded graphics, IoT gateways, and motor control applications where memory bandwidth and processing speed are critical.
- 320KB RAM enables large data buffers and complex graphical user interfaces without external memory.
- 100MHz FT32 core provides high computational throughput for real-time processing.
- Compact 76-VFQFN package saves PCB area for space-constrained products.
- Integrated PWM and watchdog reduce external component count and enhance system reliability.
Human-Machine Interface (HMI) Systems
The large 320KB RAM supports high-resolution graphical buffers, while the 100MHz FT32 core renders smooth animations on TFT displays in industrial HMIs.
Embedded Vision Processing
With ample RAM for frame buffers and a fast core, it handles basic image preprocessing for barcode readers and inspection cameras.
IoT Edge Gateways
The 256KB flash stores protocol stacks, and the 100MHz core manages sensor aggregation and cloud communication in smart building gateways.
Portable Data Loggers
Low power consumption and 3.3V operation extend battery life in field data loggers, while the 320KB RAM buffers large datasets before writing to external storage.
Motor Control Drives
Multiple PWM outputs with dead-time control drive BLDC and PMSM motors in drones and robotics, with the watchdog ensuring safe operation.
Audio Processing Modules
The high-speed core and large RAM enable real-time audio effects processing in musical instruments and public address systems.
- Q: What core processor does the FT907Q-C-T use?
- A: It is based on the FT32 32-bit RISC core running at 100MHz.
- Q: What is the supply voltage range?
- A: It operates from 2.97V to 3.63V, compatible with 3.3V logic.
- Q: How much RAM is available?
- A: It features 320KB of RAM, which is generous for data-intensive applications.
- Q: What package is this device offered in?
- A: It comes in a 76-VFQFN Exposed Pad package for compact designs.
- Q: Does it include PWM and watchdog timer?
- A: Yes, it includes PWM channels and a watchdog timer for reliable operation.
