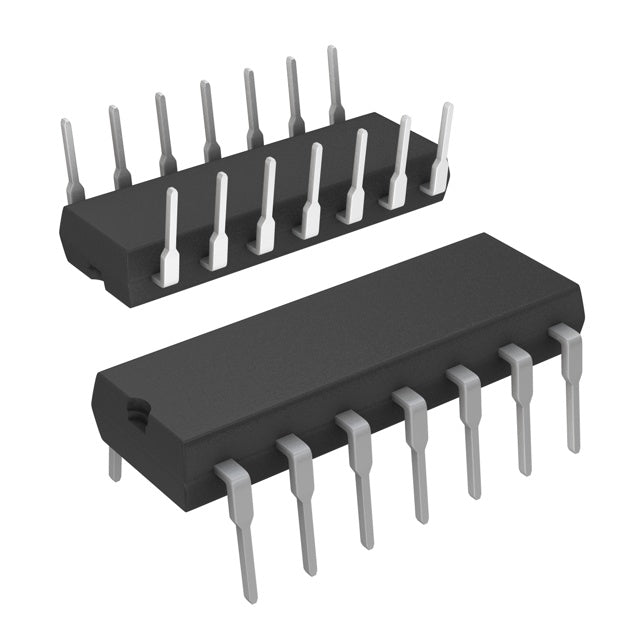

NXP USA Inc. HEF4072BP,652
Regular price
$1.92
Regular price
$0.48
Sale price
$1.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.92 | $1.92 |
| 15+ | $0.44 | $6.60 |
| 25+ | $0.43 | $10.75 |
| 50+ | $0.41 | $20.50 |
| 100+ | $0.36 | $36.00 |
| N+ | $0.07 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | 4000B |
| Packaging | Marketplace | Tube |
| Logic Type | OR Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 3mA, 3mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 55ns @ 15V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
HEF4072BP,652.pdf
×
