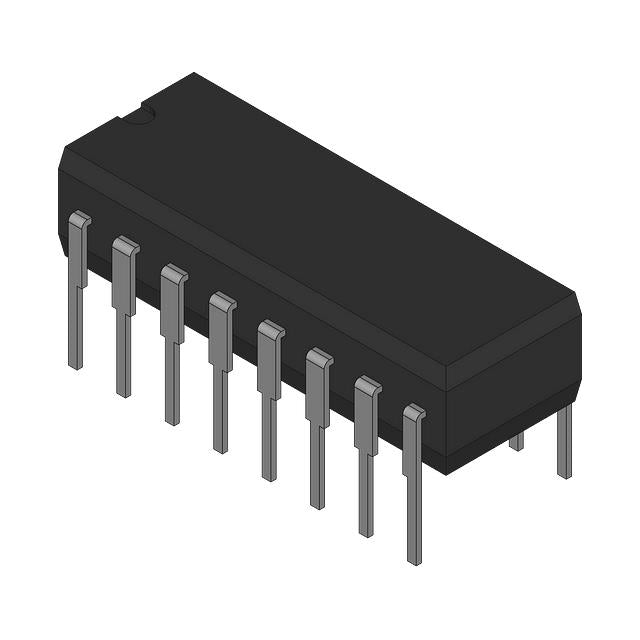

Harris Corporation HI1-5046-7
Regular price
$16.68
Regular price
$4.17
Sale price
$16.68
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.68 | $16.68 |
| 15+ | $3.84 | $57.60 |
| 25+ | $3.75 | $93.75 |
| 50+ | $3.54 | $177.00 |
| 100+ | $3.13 | $313.00 |
| N+ | $0.63 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Harris Corporation |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -88dB @ 100kHz |
| Operating Temperature | 0°C ~ 75°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP (0.300", 7.62mm) |
HI1-5046-7.pdf
×
