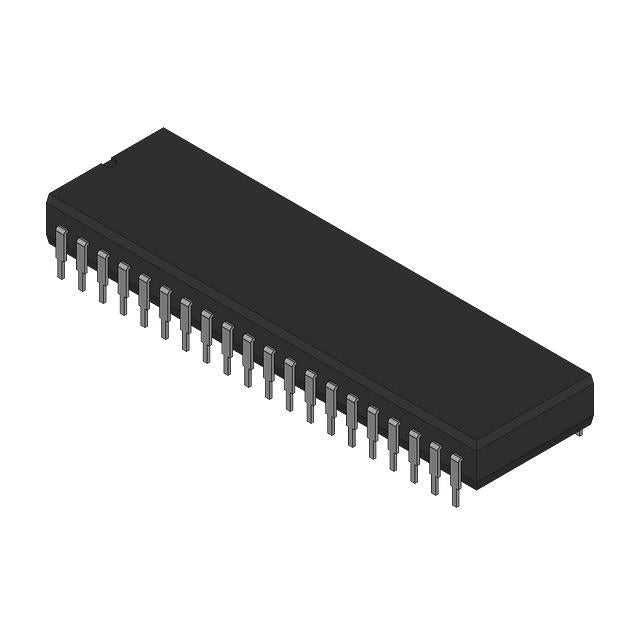

Harris Corporation HI1-7153S-2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $173.36 | $173.36 |
| 15+ | $39.87 | $598.05 |
| 25+ | $39.01 | $975.25 |
| 50+ | $36.84 | $1,842.00 |
| 100+ | $32.51 | $3,251.00 |
| N+ | $6.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Harris Corporation |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | - |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | ±4.5V ~ 5.5V |
| Voltage - Supply, Digital | ±4.5V ~ 5.5V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 40-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 40-CERDIP |
The HI1-7153S-2 is a rugged 10-bit ADC from Harris Corporation, featuring 8 multiplexed input channels and a MUX-S/H-ADC architecture. Designed for extreme environments, it operates from -55°C to 125°C and comes in a hermetic 40-CDIP package. With external reference support, it provides flexible and reliable conversion for military, aerospace, and industrial applications requiring multi-channel data acquisition.
- Extreme Temperature Range: -55°C to 125°C for military-grade reliability.
- 8-Channel Multiplexing: Reduces component count in multi-sensor systems.
- Hermetic Package: 40-CDIP protects against moisture and contaminants.
- Proven Architecture: MUX-S/H-ADC ensures stable sampling.
- External Reference: Allows precision calibration per application.
Aerospace Data Acquisition
The -55°C to 125°C range and ceramic package make it ideal for avionics and satellite telemetry.
Military Electronics
High reliability and 8-channel multiplexing support radar and electronic warfare systems.
Industrial Process Control
Multiple channels allow monitoring of pressure, flow, and temperature sensors in harsh environments.
Scientific Instrumentation
10-bit resolution provides adequate precision for laboratory data logging.
Energy Management
Used in power grid monitoring for voltage and current sensing across multiple phases.
Transportation Systems
Rugged design supports railway and heavy machinery control systems.
- Q: What is the HI1-7153S-2?
- A: It is a 10-bit analog-to-digital converter with 8-channel multiplexer and sample-and-hold, from Harris Corporation.
- Q: What is the resolution?
- A: The resolution is 10 bits.
- Q: How many channels does it have?
- A: It has 8 input channels.
- Q: What architecture does it use?
- A: It uses MUX-S/H-ADC architecture with external reference.
- Q: What is the operating temperature range?
- A: It operates over -55°C to 125°C, suitable for military applications.
- Q: What is the package type?
- A: It is available in a 40-CDIP (0.600", 15.24mm) ceramic DIP package.
