Infineon Technologies ICE186EMXUMA1
Regular price
$2.61
Regular price
$2.75
Sale price
$2.61
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.61 | $2.61 |
| 15+ | $2.53 | $37.95 |
| 25+ | $2.48 | $62.00 |
| 50+ | $2.34 | $117.00 |
| 100+ | $2.06 | $206.00 |
| N+ | $0.41 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolSET™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 20 V |
| Voltage - Supply (Vcc/Vdd) | 7.4V ~ 14.6V, 9.45V ~ 28.9V |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 150kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

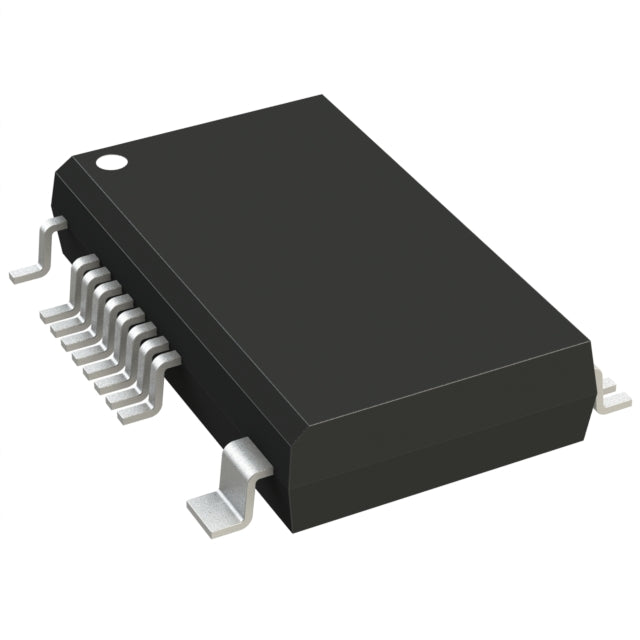

| Package / Case | 27-SMD Module |
| Supplier Device Package | PG-DSO-27-1 |
| ROHS |  |
Infineon ICE186EMXUMA1 CoolSET™ PWM Controller
The ICE186EMXUMA1 is a high-performance offline PWM controller from Infineon's CoolSET™ family, engineered for isolated flyback power supply applications. This surface-mount controller delivers exceptional reliability with 800V breakdown voltage capability and operates across a wide temperature range from -40°C to 125°C.
Key Features:
- High Voltage Capability: 800V breakdown voltage for robust isolation
- Flexible Switching: 25kHz to 150kHz frequency range for optimized efficiency
- Comprehensive Protection: Current limiting, over-temperature, over-voltage, and short circuit protection
- Soft Start Control: Reduces inrush current and extends component life
- Wide Operating Range: Dual supply voltage options (7.4V-14.6V / 9.45V-28.9V)
- Industrial Grade: -40°C to 125°C junction temperature rating
Applications:
Ideal for AC/DC power supplies, industrial control systems, telecommunications equipment, and automotive electronics requiring isolated flyback topology with advanced fault protection.
ICE186EMXUMA1.pdf
×
