Infineon Technologies ICE2A0565GXUMA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,985.37 | Dhs. 355,985.37 |
| 15+ | Dhs. 344,743.72 | Dhs. 5,171,155.80 |
| 25+ | Dhs. 337,249.30 | Dhs. 8,431,232.50 |
| 50+ | Dhs. 318,513.22 | Dhs. 15,925,661.00 |
| 100+ | Dhs. 281,041.08 | Dhs. 28,104,108.00 |
| N+ | Dhs. 56,208.22 | Price Inquiry |
Request Quote / Inquiry

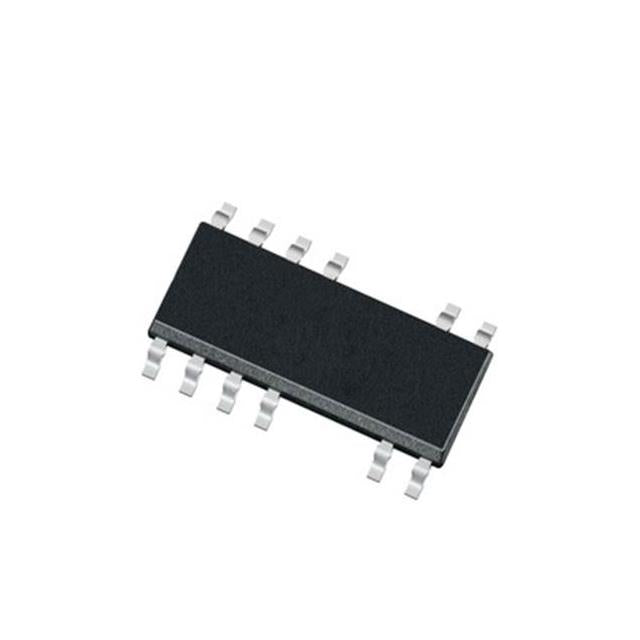

Infineon ICE2A0565GXUMA1 - CoolSET®F2 Offline Switcher IC
The ICE2A0565GXUMA1 from Infineon Technologies is a high-performance offline switcher IC from the CoolSET®F2 series, designed for efficient AC/DC power conversion in flyback topology applications up to 23W. This integrated solution combines a 650V CoolMOS™ power MOSFET with a current mode controller, delivering exceptional reliability and performance for compact power supply designs.
Key Features & Benefits
- Integrated 650V Power MOSFET: High voltage capability for universal input applications
- 23W Power Output: Optimized for low to medium power AC/DC converters
- 100kHz Switching Frequency: Enables compact transformer design
- Comprehensive Protection: Current limiting, over-voltage, over-temperature, over-load, and open-loop protection
- Wide Operating Range: 8.5V to 21V supply voltage, -40°C to 150°C junction temperature
- Soft Start Function: Reduces inrush current and stress on components
- Surface Mount Package: PG-DSO-12 for automated assembly and space-saving designs
Typical Applications
- AC/DC adapters and chargers
- Auxiliary power supplies
- LED lighting drivers
- Home appliances and consumer electronics
- Industrial control systems
- Standby power supplies
Why Choose ICE2A0565GXUMA1?
This CoolSET®F2 IC simplifies power supply design by integrating the power switch and controller in a single package, reducing component count, board space, and design complexity. The comprehensive protection features ensure long-term reliability, while the efficient flyback topology delivers excellent performance across a wide range of operating conditions.
Backed by Infineon's reputation for quality and reliability in power semiconductor solutions, the ICE2A0565GXUMA1 is an ideal choice for engineers seeking a proven, cost-effective solution for offline power conversion applications.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolSET®F2 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 13.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 72% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 23 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Supplier Device Package | PG-DSO-12-10 |
ICE2A0565GXUMA1.pdf
