Infineon Technologies ICE2A765I
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.05 | Dhs. 8.05 |
| 15+ | Dhs. 7.79 | Dhs. 116.85 |
| 25+ | Dhs. 7.62 | Dhs. 190.50 |
| 50+ | Dhs. 7.20 | Dhs. 360.00 |
| 100+ | Dhs. 6.35 | Dhs. 635.00 |
| N+ | Dhs. 1.27 | Price Inquiry |
Request Quote / Inquiry
Infineon ICE2A765I - CoolSET®F2 Offline Switcher IC
The ICE2A765I from Infineon Technologies is a high-performance offline switcher IC from the CoolSET®F2 family, designed for cost-effective and reliable AC/DC power conversion in flyback topologies. With an integrated 650V power MOSFET and comprehensive protection features, this IC delivers up to 240W of output power while maintaining excellent efficiency and reliability across demanding operating conditions.
Key Features & Benefits
- Integrated 650V Power MOSFET - Reduces component count and board space
- 240W Output Power - Suitable for medium-power SMPS applications
- 100kHz Switching Frequency - Enables compact transformer design
- Comprehensive Protection - Current limiting, over-voltage, over-temperature, over-load, and open-loop protection
- Wide Operating Range - -40°C to 150°C junction temperature for industrial applications
- Soft Start Control - Minimizes inrush current and stress on components
- RoHS Compliant - Meets environmental standards for global markets
Typical Applications
- Switch-mode power supplies (SMPS) for consumer electronics
- AC/DC adapters and chargers
- Auxiliary power supplies in industrial equipment
- LED driver circuits
- Home appliances and white goods
- Telecom and networking equipment
Technical Highlights

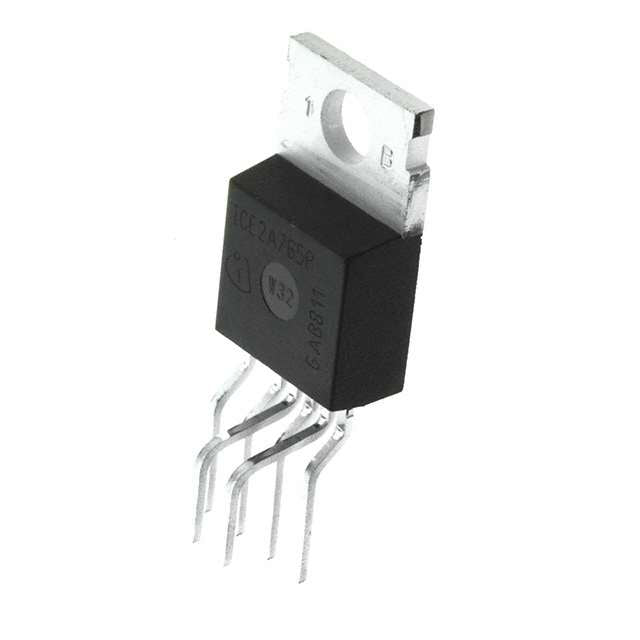

The ICE2A765I operates from a supply voltage range of 8.5V to 21V with a 13.5V startup threshold, ensuring reliable operation across varying input conditions. The 72% maximum duty cycle and integrated soft-start feature provide smooth startup behavior and reduce component stress. The TO-220-6 through-hole package (PG-TO220-6-46) offers excellent thermal performance and ease of assembly for both prototyping and production.
All specifications are subject to manufacturer's datasheet. For detailed application notes and design guidelines, please refer to the official Infineon documentation.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolSET®F2 |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 13.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 72% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 240 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Formed Leads |
| Supplier Device Package | PG-TO220-6-46 |
| ROHS |  |
