Infineon Technologies ICE2A765P2BKSA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,880.72 | Dhs. 355,880.72 |
| 15+ | Dhs. 344,642.38 | Dhs. 5,169,635.70 |
| 25+ | Dhs. 337,150.15 | Dhs. 8,428,753.75 |
| 50+ | Dhs. 318,419.59 | Dhs. 15,920,979.50 |
| 100+ | Dhs. 280,958.46 | Dhs. 28,095,846.00 |
| N+ | Dhs. 56,191.69 | Price Inquiry |
Request Quote / Inquiry

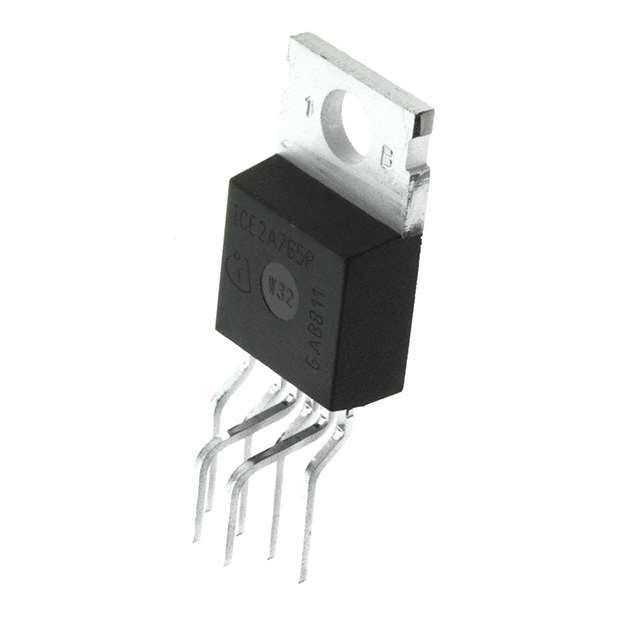

Infineon ICE2A765P2BKSA1 CoolSET®F2 Offline Flyback Switching Controller
The ICE2A765P2BKSA1 is a high-performance offline flyback switching controller from Infineon's CoolSET®F2 series, designed for reliable AC/DC power conversion applications up to 240W. This integrated controller features a 650V breakdown voltage rating and operates at 100kHz switching frequency, making it ideal for industrial power supplies, consumer electronics, and telecommunications equipment.
Key Features & Benefits
- High Voltage Capability: 650V breakdown voltage for robust performance in demanding applications
- Integrated Power Switch: Built-in switching element simplifies design and reduces component count
- Wide Operating Range: 8.5V to 21V supply voltage with 13.5V startup voltage
- Comprehensive Protection: Current limiting, overload, over-temperature, over-voltage, and open-loop protection
- Efficient Operation: 72% duty cycle and soft-start control for optimized performance
- Industrial Temperature Range: -40°C to 150°C (TJ) for reliable operation in harsh environments
- Standard Package: TO-220-6 through-hole mounting for easy integration
Typical Applications
- AC/DC power supplies and adapters
- Industrial control systems
- Telecommunications equipment
- Consumer electronics power management
- Battery chargers and LED drivers
Why Choose Infineon CoolSET®F2?
Infineon's CoolSET®F2 series represents a proven solution for offline power conversion, combining high integration, comprehensive protection features, and reliable performance. The ICE2A765P2BKSA1 offers designers a cost-effective, space-saving solution with the quality and reliability expected from Infineon Technologies.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolSET®F2 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 13.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 72% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 240 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Formed Leads |
| Supplier Device Package | PG-TO220-6-47 |
ICE2A765P2BKSA1.pdf
