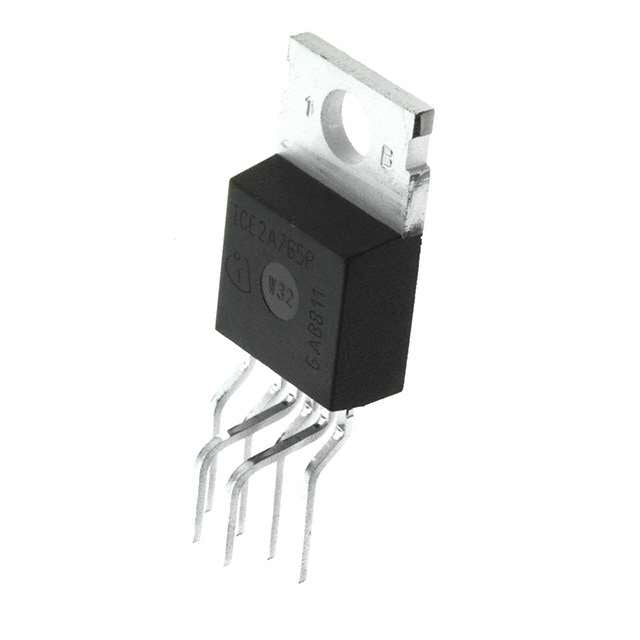

Infineon Technologies ICE2B765PCKSA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.05 | Dhs. 8.05 |
| 15+ | Dhs. 7.79 | Dhs. 116.85 |
| 25+ | Dhs. 7.62 | Dhs. 190.50 |
| 50+ | Dhs. 7.20 | Dhs. 360.00 |
| 100+ | Dhs. 6.35 | Dhs. 635.00 |
| N+ | Dhs. 1.27 | Price Inquiry |
Request Quote / Inquiry
Infineon ICE2B765PCKSA1 - CoolSET®F2 Offline Flyback Switcher IC
The ICE2B765PCKSA1 from Infineon Technologies is a high-performance offline flyback switcher IC from the CoolSET®F2 series, designed for isolated AC-DC power conversion applications up to 240W. This integrated solution combines a 650V CoolMOS™ power MOSFET with a current-mode PWM controller, delivering exceptional efficiency and reliability for industrial, consumer, and telecommunications power supplies.
Key Features & Benefits
- Integrated 650V Power MOSFET - Reduces component count and board space
- 240W Power Handling - Suitable for medium-power offline applications
- 67kHz Switching Frequency - Optimized for transformer size and efficiency
- Comprehensive Protection - Current limiting, over-voltage, over-temperature, over-load, and open-loop protection
- Wide Operating Range - 8.5V to 21V supply voltage, -40°C to 150°C junction temperature
- Soft Start Control - Minimizes inrush current and stress on components
- Low Startup Voltage - 13.5V for reliable operation
Typical Applications
- AC-DC adapters and chargers
- Auxiliary power supplies for industrial equipment
- LED lighting drivers
- Home appliances and consumer electronics
- Telecom and networking equipment power supplies
Why Choose Infineon CoolSET®F2?
Infineon's CoolSET®F2 family offers proven reliability with over 20 years of field experience in power supply applications. The integrated design simplifies circuit layout, reduces BOM costs, and ensures consistent performance across production. With comprehensive protection features and wide operating margins, the ICE2B765PCKSA1 provides robust, long-lifecycle solutions for demanding industrial and commercial applications.
All products are sourced from authorized distributors with full traceability and manufacturer warranty support.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolSET®F2 |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 13.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 72% |
| Frequency - Switching | 67kHz |
| Power (Watts) | 240 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Formed Leads |
| Supplier Device Package | PG-TO220-6-47 |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
