Infineon Technologies ICE3A5065PBKSA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,880.72 | Dhs. 355,880.72 |
| 15+ | Dhs. 344,642.38 | Dhs. 5,169,635.70 |
| 25+ | Dhs. 337,150.15 | Dhs. 8,428,753.75 |
| 50+ | Dhs. 318,419.59 | Dhs. 15,920,979.50 |
| 100+ | Dhs. 280,958.46 | Dhs. 28,095,846.00 |
| N+ | Dhs. 56,191.69 | Price Inquiry |
Request Quote / Inquiry
Infineon ICE3A5065PBKSA1 - CoolSET™ F3 Integrated Offline Switcher
The ICE3A5065PBKSA1 from Infineon Technologies is a high-performance integrated offline switcher IC from the CoolSET™ F3 series, combining a CoolMOS™ power MOSFET with a current mode controller in a single package. Designed for flyback topology applications up to 220W, this component delivers exceptional efficiency and reliability for AC-DC power conversion.
Key Features & Benefits
- Integrated CoolMOS™ Technology: 650V breakdown voltage with superior switching performance
- High Power Capability: Supports up to 220W output power in flyback configurations
- Comprehensive Protection: Built-in current limiting, over-voltage, over-temperature, over-load, and open-loop protection
- Efficient Operation: 100kHz switching frequency with 72% maximum duty cycle
- Soft Start Control: Reduces inrush current and improves system reliability
- Wide Operating Range: Supply voltage 8.5V to 21V, startup voltage 15V
- Extended Temperature Range: -25°C to 130°C junction temperature rating
Typical Applications
- AC-DC power supplies for consumer electronics
- Industrial power conversion systems
- Telecom and networking equipment power modules
- LED lighting drivers
- Auxiliary power supplies
- Battery chargers
Why Choose ICE3A5065PBKSA1?
This integrated solution reduces component count, simplifies design, and improves overall system reliability. The combination of CoolMOS™ technology with intelligent control features makes it ideal for cost-effective, high-efficiency power supply designs. Backed by Infineon's reputation for quality and long-term product availability, the ICE3A5065PBKSA1 is the trusted choice for demanding power conversion applications.

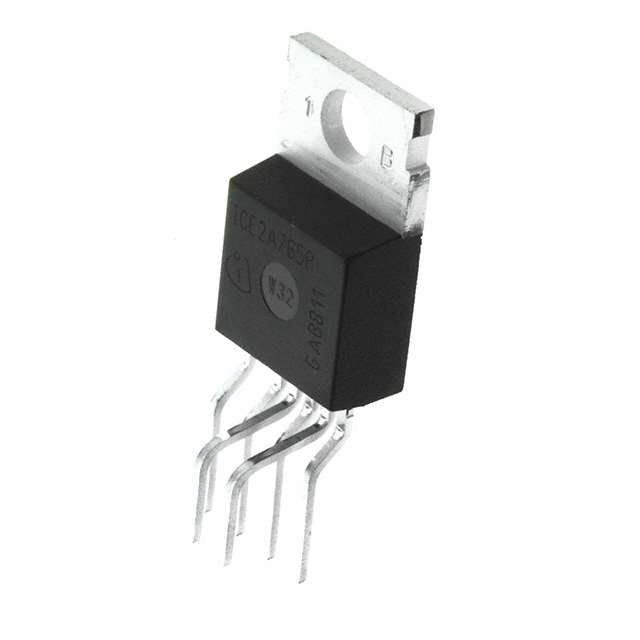

Package: TO-220-6 through-hole mounting for excellent thermal performance and ease of assembly.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolMOS™, CoolSET™F3 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 72% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 220 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -25°C ~ 130°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Formed Leads |
| Supplier Device Package | PG-TO220-6-47 |
ICE3A5065PBKSA1.pdf
