Infineon Technologies ICE3B0565JGXUMA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,985.37 | Dhs. 355,985.37 |
| 15+ | Dhs. 344,743.72 | Dhs. 5,171,155.80 |
| 25+ | Dhs. 337,249.30 | Dhs. 8,431,232.50 |
| 50+ | Dhs. 318,513.22 | Dhs. 15,925,661.00 |
| 100+ | Dhs. 281,041.08 | Dhs. 28,104,108.00 |
| N+ | Dhs. 56,208.22 | Price Inquiry |
Request Quote / Inquiry

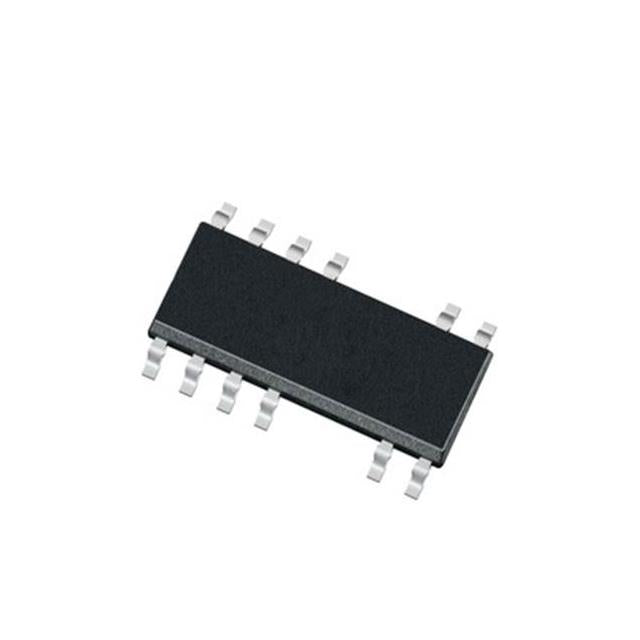

Infineon ICE3B0565JGXUMA1 - CoolSET™ F3 Offline Switcher IC
The ICE3B0565JGXUMA1 from Infineon Technologies is a high-performance offline switcher IC featuring CoolMOS™ and CoolSET™ F3 technology. This integrated AC-DC converter is designed for flyback topology applications up to 25W, delivering reliable power conversion with comprehensive protection features for industrial, consumer, and telecom applications.
Key Features & Benefits
- High Voltage Capability: 650V breakdown voltage for robust performance
- Integrated Design: Built-in switch reduces component count and board space
- Efficient Switching: 67kHz switching frequency with 75% duty cycle
- Comprehensive Protection: Current limiting, over-load, over-temperature, over-voltage, and open-loop protection
- Wide Operating Range: -40°C to 150°C junction temperature
- Soft Start Control: Reduces inrush current and stress on components
Applications
- Switch-mode power supplies (SMPS)
- AC-DC adapters and chargers
- Auxiliary power supplies
- Industrial control systems
- Consumer electronics
- Telecom equipment
Quality & Compliance
This component is RoHS compliant, meeting international environmental standards for restricted substances. Sourced from authorized distributors with full traceability and quality assurance.
Related Products & Resources
Explore our complete range of AC DC Converters & Offline Switchers for more power conversion solutions. Visit HQICKEY for our full catalog of high-reliability semiconductor components, or check our Technical Blog for application notes, design guides, and industry insights.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolMOS™, CoolSET™F3 |
| Packaging | Marketplace | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10.3V ~ 26V |
| Duty Cycle | 75% |
| Frequency - Switching | 67kHz |
| Power (Watts) | 25 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Supplier Device Package | PG-DSO-12-10 |
| ROHS |  |
ICE3B0565JGXUMA1.pdf
