Infineon Technologies ICE3B3565PBKSA1
Regular price
Dhs. 355,880.72
Regular price
Dhs. 374,611.28
Sale price
Dhs. 355,880.72
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,880.72 | Dhs. 355,880.72 |
| 15+ | Dhs. 344,642.38 | Dhs. 5,169,635.70 |
| 25+ | Dhs. 337,150.15 | Dhs. 8,428,753.75 |
| 50+ | Dhs. 318,419.59 | Dhs. 15,920,979.50 |
| 100+ | Dhs. 280,958.46 | Dhs. 28,095,846.00 |
| N+ | Dhs. 56,191.69 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
Infineon ICE3B3565PBKSA1 - CoolSET™ F3 Offline Switcher IC
The ICE3B3565PBKSA1 from Infineon Technologies is a high-performance offline switcher IC from the CoolSET™ F3 series, combining CoolMOS™ technology with integrated control circuitry for efficient AC-DC power conversion applications up to 170W.
Key Features
- High Voltage Capability: 650V breakdown voltage for universal input applications
- Integrated Power Switch: Built-in CoolMOS™ switch for compact, cost-effective designs
- Flyback Topology: Optimized for isolated flyback converter applications
- Wide Operating Range: 8.5V to 21V supply voltage with 15V startup
- Comprehensive Protection: Current limiting, overload, over-temperature, over-voltage, and open-loop protection
- Efficient Operation: 67kHz switching frequency with 72% maximum duty cycle
- Soft Start: Controlled startup reduces inrush current and stress
Applications
Ideal for AC-DC power supplies in consumer electronics, industrial equipment, LED lighting drivers, and auxiliary power supplies requiring isolated output up to 170W.
Package Information

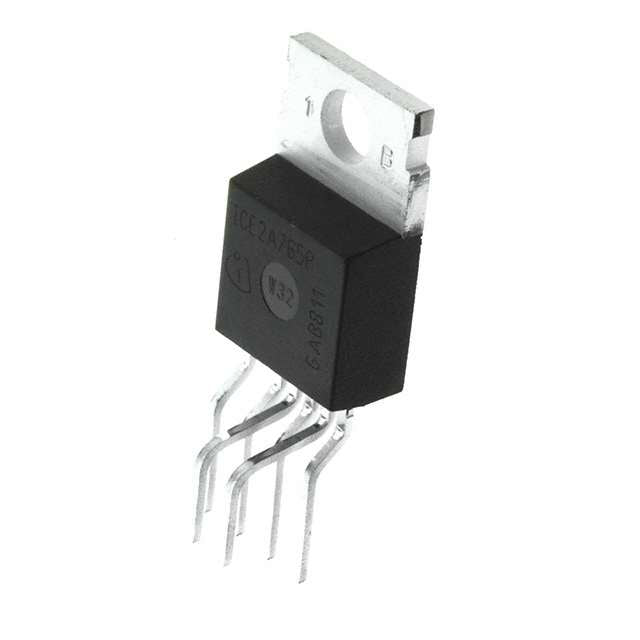

Through-hole mounting in industry-standard TO-220-6 package with formed leads (PG-TO220-6-47), suitable for high-reliability applications requiring robust thermal performance.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolMOS™, CoolSET™F3 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 72% |
| Frequency - Switching | 67kHz |
| Power (Watts) | 170 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -25°C ~ 130°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Formed Leads |
| Supplier Device Package | PG-TO220-6-47 |
ICE3B3565PBKSA1.pdf
×
