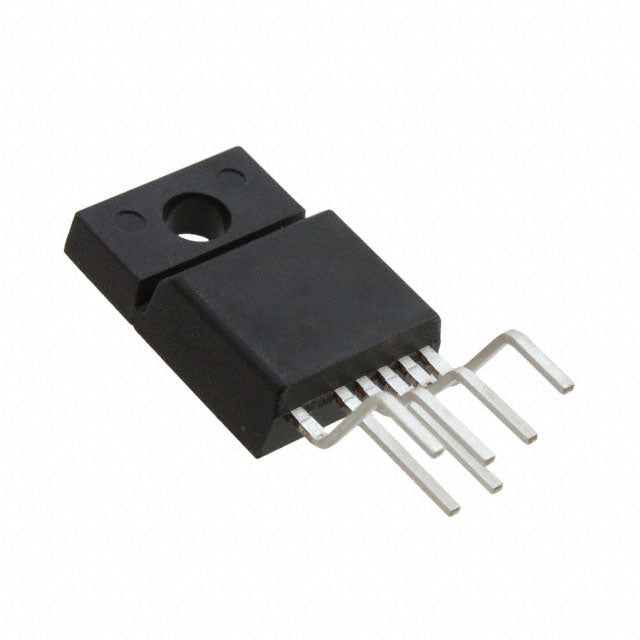

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ICE3BR1065JFXKSA2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,894.28 AED | Dhs. 355,894.28 AED |
| 15+ | Dhs. 344,655.52 AED | Dhs. 5,169,832.80 AED |
| 25+ | Dhs. 337,163.00 AED | Dhs. 8,429,075.00 AED |
| 50+ | Dhs. 318,431.73 AED | Dhs. 15,921,586.50 AED |
| 100+ | Dhs. 280,969.17 AED | Dhs. 28,096,917.00 AED |
| N+ | Dhs. 56,193.83 AED | Price Inquiry |
Couldn't load pickup availability
Infineon ICE3BR1065JFXKSA2 - CoolSET™ F3R Offline Flyback Controller
The ICE3BR1065JFXKSA2 from Infineon Technologies is a high-performance offline flyback controller featuring integrated 650V CoolMOS™ technology. This advanced power management IC combines a PWM controller with a high-voltage power MOSFET in a single TO-220 package, delivering up to 178W of output power with exceptional efficiency.
Key Features & Benefits
- Integrated 650V CoolMOS™ - High-voltage power switch for superior efficiency and thermal performance
- 178W Power Capability - Suitable for medium-power SMPS applications including adapters, chargers, and industrial supplies
- 67kHz Switching Frequency - Optimized for compact transformer design and reduced EMI
- Comprehensive Protection - Built-in current limiting, overload, over-temperature, over-voltage, and open-loop protection
- Wide Operating Range - 10.5V to 25V supply voltage, -25°C to 130°C junction temperature
- Low Startup Current - 18V startup voltage for efficient standby operation
- Isolated Flyback Topology - Ideal for universal input AC-DC converters
Applications
- AC-DC power adapters and chargers
- Switch-mode power supplies (SMPS)
- Industrial and automation equipment power
- LED driver circuits
- Auxiliary power supplies
- Consumer electronics power management
Why Choose Authorized Distribution?
We supply 100% authentic Infineon components with full manufacturer traceability, original documentation, and warranty support. Every unit is sourced through authorized channels to ensure quality, reliability, and long lifecycle availability for your critical designs.
Documentation: Full datasheet and application notes available. Contact us for design-in support, reference designs, and technical assistance.
Stock & Delivery: Authorized stock with global shipping. Long lifecycle commitment for production programs.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolMOS™, CoolSET™F3R |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 67kHz |
| Power (Watts) | 178 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 130°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | PG-TO220-6-247 |
ICE3BR1065JFXKSA2.pdf
