Infineon Technologies ICE3BR4765JGXUMA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.22 | Dhs. 3.22 |
| 15+ | Dhs. 3.14 | Dhs. 47.10 |
| 25+ | Dhs. 3.07 | Dhs. 76.75 |
| 50+ | Dhs. 2.90 | Dhs. 145.00 |
| 100+ | Dhs. 2.56 | Dhs. 256.00 |
| N+ | Dhs. 0.51 | Price Inquiry |
Request Quote / Inquiry
Infineon ICE3BR4765JGXUMA1 - CoolSET™ F3R Offline Switcher IC
The ICE3BR4765JGXUMA1 from Infineon Technologies is a high-performance offline switcher IC featuring integrated CoolMOS™ technology for efficient flyback power supply designs up to 24W. This advanced power management IC combines a 650V avalanche-rugged CoolMOS power MOSFET with a current-mode PWM controller, delivering superior efficiency and reliability for AC-DC conversion applications.
Key Features & Benefits
- Integrated 650V CoolMOS Technology: High breakdown voltage with low on-resistance for maximum efficiency
- Comprehensive Protection: Built-in current limiting, overload, over-temperature, and over-voltage protection ensures robust operation
- Wide Operating Range: 10.5V to 27V supply voltage with 18V start-up capability
- Optimized for Flyback Topology: 65kHz switching frequency with 75% duty cycle for compact transformer design
- Extended Temperature Range: -40°C to 150°C junction temperature for industrial-grade reliability

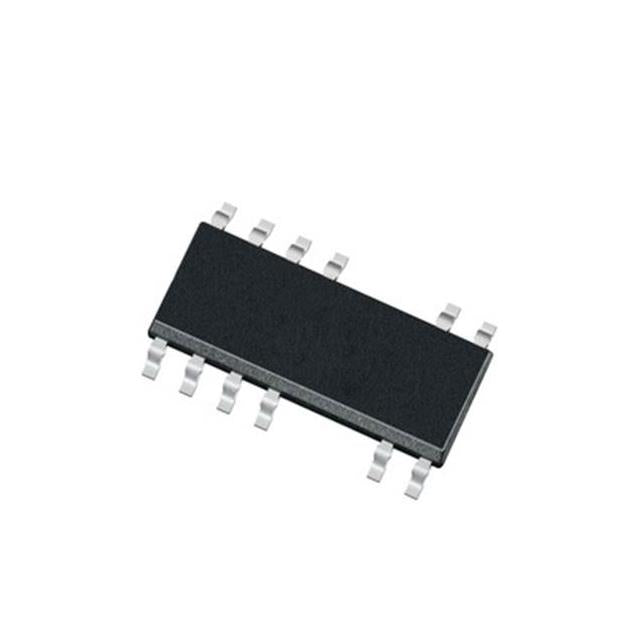

- Space-Saving Package: PG-DSO-12-10 surface mount package, available in tape and reel for automated assembly
Typical Applications
Ideal for switch-mode power supplies (SMPS) in consumer electronics, industrial controls, LED lighting drivers, auxiliary power supplies, and standby power systems requiring isolated output and high efficiency.
Compliance & Quality: RoHS and REACH compliant. Authorized distribution with full manufacturer traceability and long lifecycle support for design-in confidence.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | CoolMOS™, CoolSET™F3R |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 27V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 24 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Supplier Device Package | PG-DSO-12-10 |
ICE3BR4765JGXUMA1.pdf
