ICL7129ACPL+2

ICL7129ACPL+2 Display Driver IC - High-Precision 4.5 Digit Solution

The ICL7129ACPL+2 from Analog Devices Inc./Maxim Integrated is a high-performance display driver IC designed for precision measurement and display applications. This single-channel display driver delivers reliable 4.5-digit resolution with a wide operating voltage range of 6V to 14V from a single supply source.

Key Features & Benefits

• High Resolution: 4.5-digit display capability for precise measurements
• Flexible Power Supply: Single supply operation from 6V to 14V
• Wide Temperature Range: Operates reliably from 0°C to 70°C
• Standard Package: 40-DIP through-hole mounting for easy integration
• RoHS Compliant: Meets environmental standards for global markets

Applications

Ideal for digital panel meters, multimeters, industrial instrumentation, process control displays, and precision measurement equipment requiring accurate numeric display output.

Quality & Compliance

As an authorized distributor, we provide 100% genuine components with full traceability, manufacturer documentation, and RoHS/REACH compliance certification. All products are factory-sealed in original tube packaging with long lifecycle support.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Factory | Tube
Type	Display Driver
Number of Channels	1
Resolution (Bits)	4.5 Digit
Sampling Rate (Per Second)	-
Data Interface	-
Voltage Supply Source	Single Supply
Voltage - Supply	6V ~ 14V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Grade	-
Qualification	-

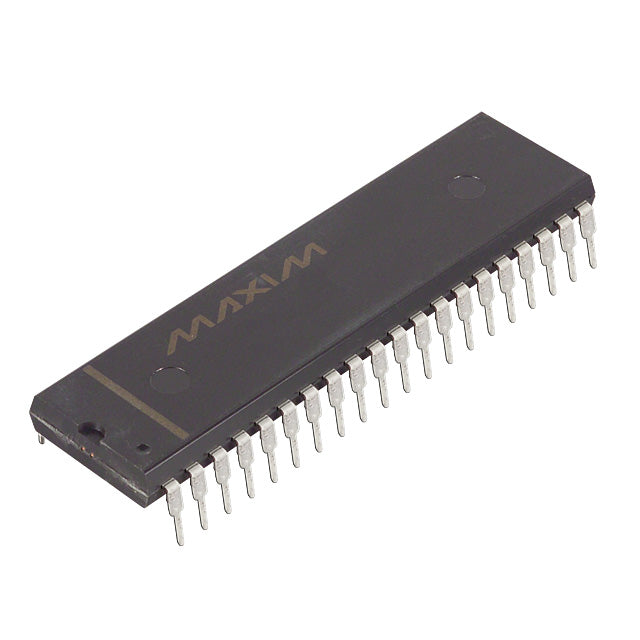

Package / Case	40-DIP (0.600", 15.24mm)
Supplier Device Package	40-PDIP
ROHS
