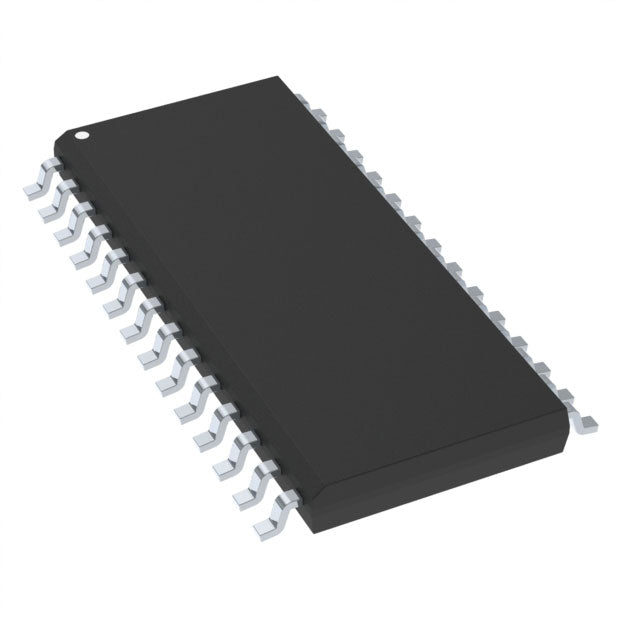

ICL7135CAI+ - Precision 4.5-Digit Display Driver IC

The ICL7135CAI+ from Analog Devices Inc./Maxim Integrated is a high-performance single-channel display driver designed for precision measurement and instrumentation applications. This versatile IC delivers reliable 4.5-digit resolution with exceptional accuracy, making it ideal for digital panel meters, multimeters, and data acquisition systems.

Key Features & Benefits

• High-Resolution Display Control: 4.5-digit precision for accurate measurement display
• Flexible Power Supply: Single supply operation from 4V to 6V simplifies design
• Wide Operating Range: Functions reliably from 0°C to 70°C for commercial applications
• Space-Saving Package: Compact 28-SSOP surface mount design (5.30mm width)
• Environmental Compliance: RoHS certified for global market requirements

Applications

Perfect for digital voltmeters, panel meters, process control displays, battery monitoring systems, temperature measurement instruments, and precision test equipment.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Analog Devices Inc./Maxim Integrated
Product Series
Packaging	Factory | Tube
Type	Display Driver
Number of Channels	1
Resolution (Bits)	4.5 Digit
Sampling Rate (Per Second)	-
Data Interface	-
Voltage Supply Source	Single Supply
Voltage - Supply	4V ~ 6V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Grade	-
Qualification	-
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
ROHS

All specifications are subject to change without notice. Please refer to the manufacturer's datasheet for the most current information.
