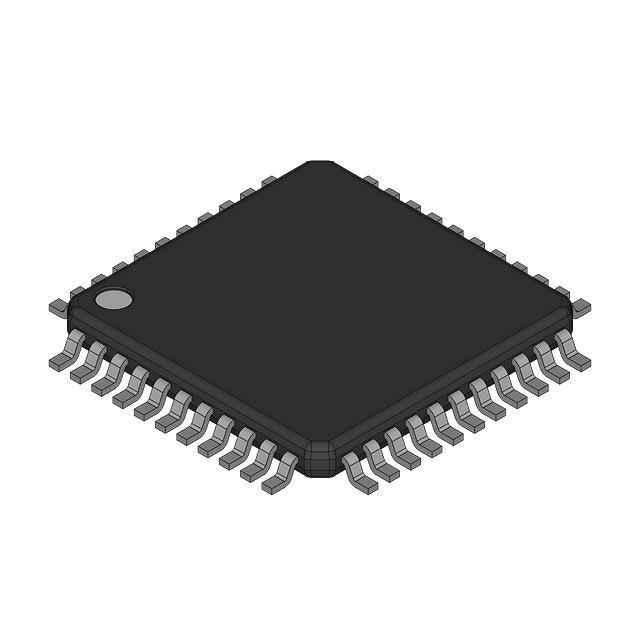

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ICL7137CM44
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 16.93 AED | Dhs. 16.93 AED |
| 15+ | Dhs. 16.40 AED | Dhs. 246.00 AED |
| 25+ | Dhs. 16.05 AED | Dhs. 401.25 AED |
| 50+ | Dhs. 15.16 AED | Dhs. 758.00 AED |
| 100+ | Dhs. 13.37 AED | Dhs. 1,337.00 AED |
| N+ | Dhs. 2.67 AED | Price Inquiry |
Couldn't load pickup availability
ICL7137CM44 - Precision 3.5-Digit ADC with Integrated Display Driver
The ICL7137CM44 from Intersil is a high-performance analog-to-digital converter (ADC) with an integrated display driver, designed for precision measurement applications requiring direct LCD or LED display interfacing. This single-chip solution combines a 3.5-digit dual-slope ADC architecture with multiplexed display outputs, making it ideal for digital panel meters, instrumentation, and industrial control systems.
Key Features & Benefits
- 3.5-Digit Resolution: Delivers accurate measurements with up to 1999 count display capability
- Integrated Display Driver: Eliminates need for external driver circuitry, reducing BOM cost and board space
- Dual-Slope ADC Architecture: Provides excellent noise rejection and linearity for precision measurements
- Single Supply Operation: Simplifies power design with ±15V supply requirement
- Wide Operating Temperature: 0°C to 70°C range suitable for commercial and industrial environments
- Surface Mount Package: 44-QFP (10x10mm) enables automated assembly and compact designs
Target Applications
- Digital panel meters and multimeters
- Process control instrumentation
- Medical diagnostic equipment
- Laboratory test equipment
- Industrial monitoring systems
- Precision weighing scales
Quality & Compliance
As an authorized distributor, we provide 100% authentic Intersil components with full traceability documentation. All parts meet RoHS and REACH compliance standards and are backed by our quality guarantee for mission-critical aerospace, automotive, industrial, medical, and telecommunications applications.
Need volume pricing, custom packaging, or long-term supply agreements? Contact our sales team for tailored solutions supporting your design lifecycle.
| Product attributes | Property Value |
| Manufacturer | Intersil |
| Product Series | |
| Packaging | Bulk | |
| Type | ADC, Display Driver |
| Number of Channels | 1 |
| Resolution (Bits) | 3.5 Digit |
| Sampling Rate (Per Second) | - |
| Data Interface | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 15V, 15V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
ICL7137CM44.pdf
