Infineon Technologies IDP2303BXUMA1
Regular price
Dhs. 25.85
Regular price
Dhs. 27.20
Sale price
Dhs. 25.85
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 25.85 | Dhs. 25.85 |
| 15+ | Dhs. 25.02 | Dhs. 375.30 |
| 25+ | Dhs. 24.48 | Dhs. 612.00 |
| 50+ | Dhs. 23.12 | Dhs. 1,156.00 |
| 100+ | Dhs. 20.40 | Dhs. 2,040.00 |
| N+ | Dhs. 4.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

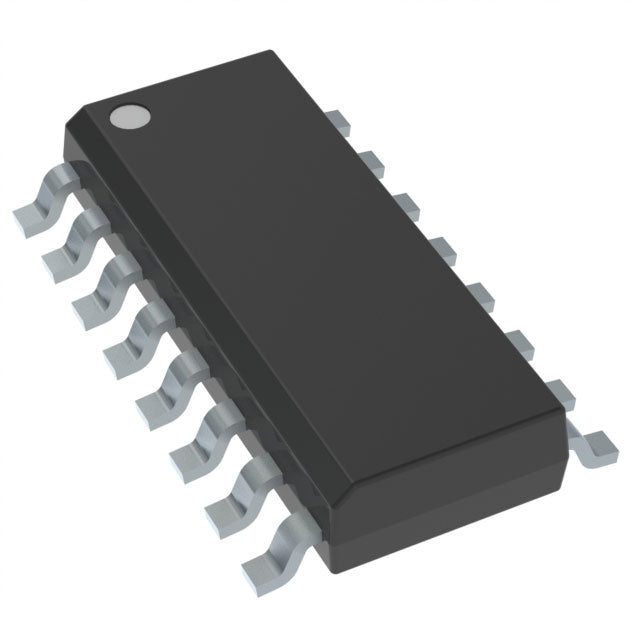

Infineon IDP2303BXUMA1 Half-Bridge AC/DC Offline Switcher IC
The IDP2303BXUMA1 from Infineon Technologies is a high-performance isolated half-bridge AC/DC offline switching controller designed for reliable power conversion applications. This advanced IC delivers exceptional efficiency and comprehensive protection features for demanding industrial, telecommunications, and power supply designs.
Key Features & Benefits
- Wide Input Voltage Range: 90V to 264V AC input capability for universal mains operation
- Flexible Switching Frequency: 100kHz to 600kHz range enables optimized design trade-offs
- Comprehensive Fault Protection: Integrated over-voltage, over-load, over-temperature, and open-loop protection
- Advanced Control Features: Enable pin, soft-start, and synchronization for enhanced system integration
- Extended Temperature Range: -40°C to 125°C (TJ) operation for harsh environments
- Compact Surface Mount Package: Space-saving PG-DSO-16 (16-SOIC) footprint
- RoHS Compliant: Environmentally friendly design meets global standards
Typical Applications
Ideal for AC/DC power supplies, industrial control systems, telecommunications equipment, LED lighting drivers, and auxiliary power modules requiring isolated half-bridge topology with robust protection.
Related Resources
- Browse AC DC Converters, Offline Switchers Collection - Explore our complete range of AC/DC offline switching controller ICs for power supply designs
- Visit HQICKEY Homepage - Your trusted source for Infineon Technologies and premium semiconductor components
- Read Our Technical Blog - Stay updated with the latest insights on power electronics, design tips, and industry trends
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Voltage - Start Up | 20.5 V |
| Voltage - Supply (Vcc/Vdd) | 90V ~ 264V |
| Duty Cycle | - |
| Frequency - Switching | 100kHz ~ 600kHz |
| Power (Watts) | - |
| Fault Protection | Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | EN, Soft Start, Sync |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-16 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
