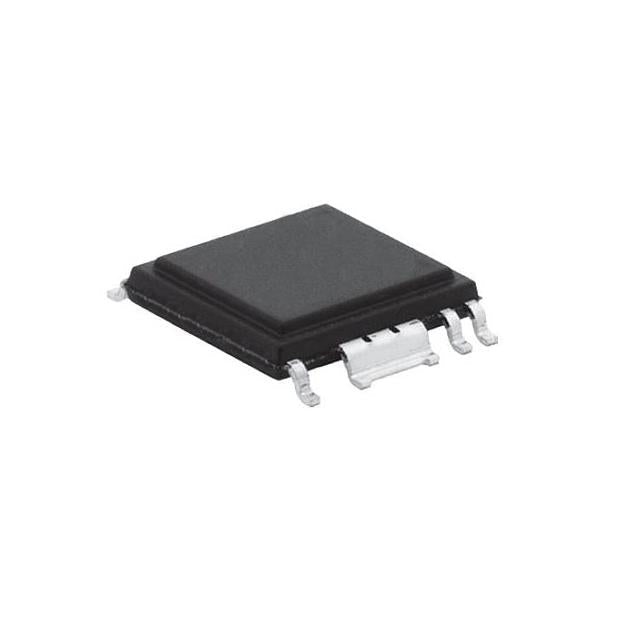

Power Integrations INN2003K-TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.00 | $1.00 |
| 15+ | $0.97 | $14.55 |
| 25+ | $0.95 | $23.75 |
| 50+ | $0.89 | $44.50 |
| 100+ | $0.79 | $79.00 |
| N+ | $0.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | InnoSwitch™-CH |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 60% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 12 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| ROHS |  |
The Power Integrations INN2003K-TL is an isolated Flyback offline switcher from the InnoSwitch™-CH series featuring secondary-side synchronous rectification. It integrates the power switch with a 650V breakdown rating and delivers up to 12W at 100kHz switching frequency with a 60% maximum duty cycle. Protection includes current limiting, over temperature, and over voltage. It is housed in a 15-lead 16-PowerSOIC package and rated from -40°C to 85°C.
- Isolated Flyback topology with secondary-side SR supports efficient, galvanically isolated designs.
- Integrated switch with 650V breakdown simplifies the power stage and reduces external parts.
- 100kHz switching frequency and 60% max duty cycle enable compact magnetics.
- Current limiting, over temperature, and over voltage protection enhance reliability.
- 15-lead 16-PowerSOIC package suits space-constrained isolated supplies.
Compact Isolated Adapters
The isolated Flyback topology with integrated switch and secondary-side SR makes this device suitable for compact AC-DC adapters up to 12W, where galvanic isolation is required.
Chargers and USB Power Supplies
With a 650V breakdown rating and 100kHz switching, the InnoSwitch-CH device supports small-form-factor chargers that need an isolated output and efficient secondary-side rectification.
Standby and Auxiliary Supplies
The integrated switch and 60% maximum duty cycle simplify the design of isolated standby rails in appliances and consumer electronics.
Industrial Isolated Bias Rails
Rated from -40°C to 85°C, the device suits isolated bias and housekeeping supplies in industrial systems, with over temperature and over voltage protection.
- Q: What topology does the INN2003K-TL use?
- A: It is an isolated Flyback offline switcher with secondary-side synchronous rectification (SR).
- Q: Does it have an integrated switch?
- A: Yes, the power switch is integrated on-chip.
- Q: What is the breakdown voltage?
- A: The device is rated for 650V breakdown.
- Q: What is the maximum duty cycle and switching frequency?
- A: 60% maximum duty cycle at 100kHz switching frequency.
- Q: How much power does it deliver?
- A: Up to 12W, with current limiting, over temperature, and over voltage protection.
