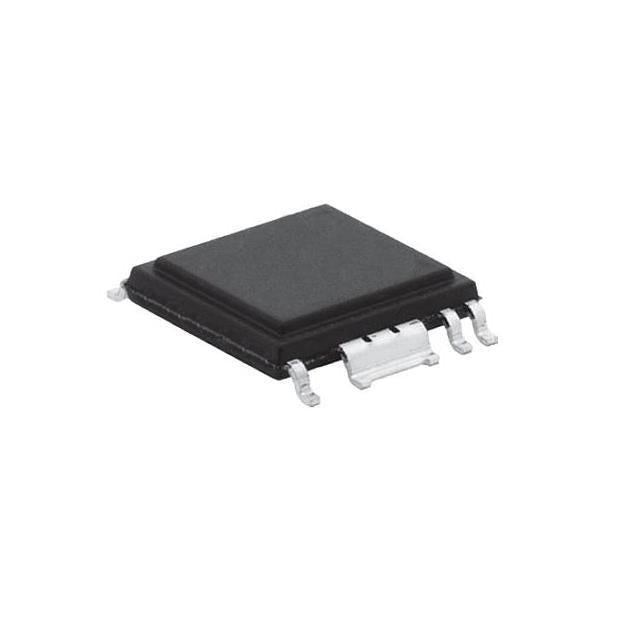

Power Integrations INN2104K-TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.83 | $0.83 |
| 15+ | $0.80 | $12.00 |
| 25+ | $0.78 | $19.50 |
| 50+ | $0.74 | $37.00 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | InnoSwitch™-CE |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 60% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 15 W |
| Fault Protection | Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| ROHS |  |
The INN2104K-TL from Power Integrations is an isolated flyback offline switcher in the InnoSwitch™-CE series featuring secondary-side synchronous rectification. It integrates a 650V switch and delivers up to 15 W at 100kHz with a 60% maximum duty cycle. Protection includes over temperature and over voltage. The 16-PowerSOIC package is rated for -40°C to 105°C ambient temperatures.
- Secondary-side synchronous rectification supports efficient isolated flyback designs.
- Integrated 650V switch reduces external component count.
- Over temperature and over voltage protection enhance reliability.
- Compact 16-PowerSOIC package saves board space.
- -40°C to 105°C ambient range suits varied applications.
Compact Chargers and Adapters
The INN2104K-TL delivers up to 15 W in an isolated flyback topology with secondary-side synchronous rectification, making it suitable for compact chargers and adapters at 100kHz.
Consumer Electronics Power
Galvanic isolation and over temperature and over voltage protection support safe, reliable power for consumer electronics.
IoT and Embedded Supplies
The integrated 650V switch and 16-PowerSOIC package enable compact embedded power designs within a -40°C to 105°C ambient range.
Auxiliary Power Rails
With a 60% maximum duty cycle and secondary-side SR, the INN2104K-TL serves auxiliary rails requiring isolated, efficient power conversion.
- Q: What topology does the INN2104K-TL use?
- A: It is an isolated flyback offline switcher with secondary-side synchronous rectification, part of the InnoSwitch™-CE series.
- Q: Is the switch integrated?
- A: Yes, it has an integrated 650V switch.
- Q: How much power does it deliver?
- A: Up to 15 W output power at 100kHz switching frequency.
- Q: What is the maximum duty cycle?
- A: 60% maximum duty cycle.
- Q: What protections are included?
- A: Over temperature and over voltage protection.
- Q: What is the operating temperature range?
- A: -40°C to 105°C ambient temperature.
