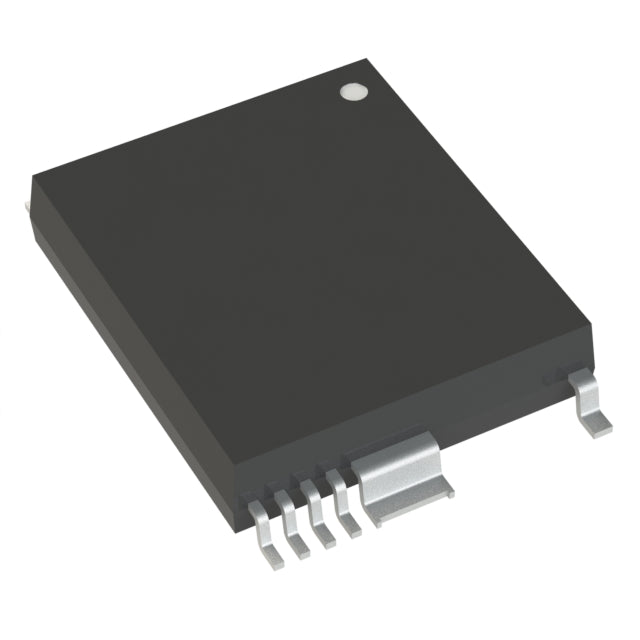

Power Integrations INN4475F-H341-TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.73 | $2.73 |
| 15+ | $2.64 | $39.60 |
| 25+ | $2.58 | $64.50 |
| 50+ | $2.44 | $122.00 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | InnoSwitch™4-Pro |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 750V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 85V ~ 265V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | 180 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerSMD Module (0.425", 10.80mm Width), 20 Leads |
| Supplier Device Package | InSOP-T28D |
| ROHS |  |
The Power Integrations INN4475F-H341-TL is an isolated flyback AC-DC converter with secondary-side synchronous rectification and an integrated 750 V switch. Operating from 85-265 VAC, it delivers up to 180 W and includes current limiting, over load, over temperature, over voltage, short circuit, and UVLO protection. Frequency control and soft-start support stable isolated power designs across a -40°C to 105°C range.
- High power density: 180 W output from a compact 28-PowerSMD module with integrated switch.
- Galvanically isolated flyback with secondary-side SR for simplified isolated designs.
- Robust protection suite: current limiting, over load, over temperature, over voltage, short circuit, and UVLO.
- Wide -40°C to 105°C operating range for demanding environments.
- Frequency control and soft-start for stable startup and operation.
High-Power AC-DC Adapters
The 180 W capability and 750 V integrated switch make this InnoSwitch™4-Pro device well suited for high-power adapters operating from universal 85-265 VAC mains, with secondary-side SR for efficient isolated output.
Industrial Power Supplies
With a -40°C to 105°C operating range and comprehensive fault protection including over temperature and UVLO, it supports reliable isolated flyback designs in industrial equipment.
Appliance and Consumer Power
Integrated switch and secondary-side SR reduce external component count while delivering isolated flyback conversion for appliance and consumer power stages up to 180 W.
Chargers and USB Power Delivery
Frequency control and soft-start features support flexible isolated flyback designs for high-power chargers requiring robust protection against short circuit and over load conditions.
- Q: What is the switching topology of the INN4475F-H341-TL?
- A: It is a flyback converter with secondary-side synchronous rectification (SR), providing galvanically isolated AC-DC conversion.
- Q: What is the maximum output power?
- A: It delivers up to 180 W from an 85-265 VAC input.
- Q: Does it include an integrated switch?
- A: Yes, the power switch is integrated on-chip, with a 750 V breakdown voltage rating.
- Q: What protections are built in?
- A: Current limiting, over load, over temperature, over voltage, short circuit, and UVLO.
- Q: What is the operating temperature range?
- A: -40°C to 105°C (TA), suitable for demanding environments.
