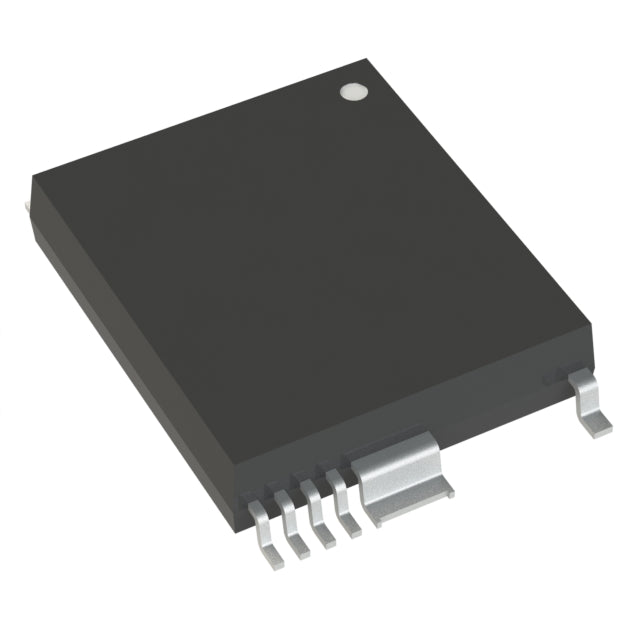

Power Integrations INN5376F-H904-TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.19 | $6.19 |
| 15+ | $6.00 | $90.00 |
| 25+ | $5.87 | $146.75 |
| 50+ | $5.54 | $277.00 |
| 100+ | $4.89 | $489.00 |
| N+ | $0.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 750V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 85V ~ 264V |
| Duty Cycle | - |
| Frequency - Switching | 50kHz ~ 130kHz |
| Power (Watts) | 125 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerSMD Module (0.425", 10.80mm Width), 20 Leads |
| Supplier Device Package | InSOP-T28D |
| ROHS |  |
The Power Integrations INN5376F-H904-TL is an isolated flyback offline switcher with secondary-side synchronous rectification and an integrated switch rated at 750V breakdown. It delivers up to 125 W, operates from an 85V to 264V Vcc range at 50kHz to 130kHz, and includes soft start. Protections include current limiting, over temperature, over voltage, short circuit, and UVLO, in a 28-PowerSMD module rated -40°C to 105°C.
- Secondary-side SR improves efficiency in isolated flyback designs.
- 750V breakdown rating supports universal mains input.
- 125 W output capability suits higher-power offline supplies.
- Broad protection set including UVLO and short circuit.
- Integrated switch simplifies design and reduces part count.
High-Power Isolated Flyback Supplies
With 125 W output capability and a 750V breakdown rating, this flyback controller with secondary-side SR suits higher-power isolated offline designs.
Efficient Secondary-Side Rectification
Secondary-side synchronous rectification improves efficiency in isolated flyback converters by replacing lossy output diodes.
Wide Mains Input Designs
An 85V to 264V Vcc range supports universal mains input offline flyback power supplies.
Protected Power Modules
Current limiting, over temperature, over voltage, short circuit, and UVLO protection safeguard the 28-PowerSMD module in demanding designs.
- Q: What topology does the INN5376F-H904-TL use?
- A: It is an isolated flyback converter with secondary-side synchronous rectification.
- Q: Does it include an integrated switch?
- A: Yes, the switch is integrated on-chip.
- Q: What is the breakdown voltage?
- A: The switch breakdown voltage rating is 750V.
- Q: How much power can it deliver?
- A: It supports up to 125 W output power.
- Q: What switching frequency range does it cover?
- A: It operates from 50kHz to 130kHz.
