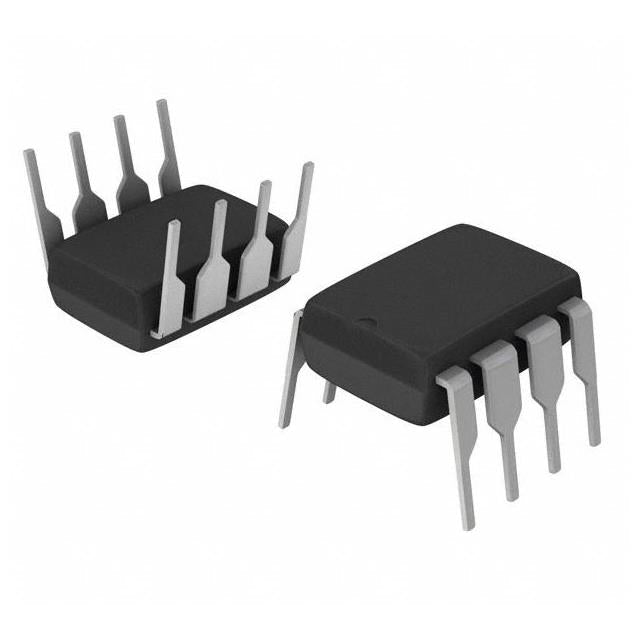

International Rectifier IR2103PBF
Regular price
$1.29
Regular price
$1.36
Sale price
$1.29
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.29 | $1.29 |
| 15+ | $1.25 | $18.75 |
| 25+ | $1.22 | $30.50 |
| 50+ | $1.16 | $58.00 |
| 100+ | $1.02 | $102.00 |
| N+ | $0.20 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | International Rectifier |
| Product Series | |
| Packaging | Bulk | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 210mA, 360mA |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 100ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
IR2103PBF.pdf
×
