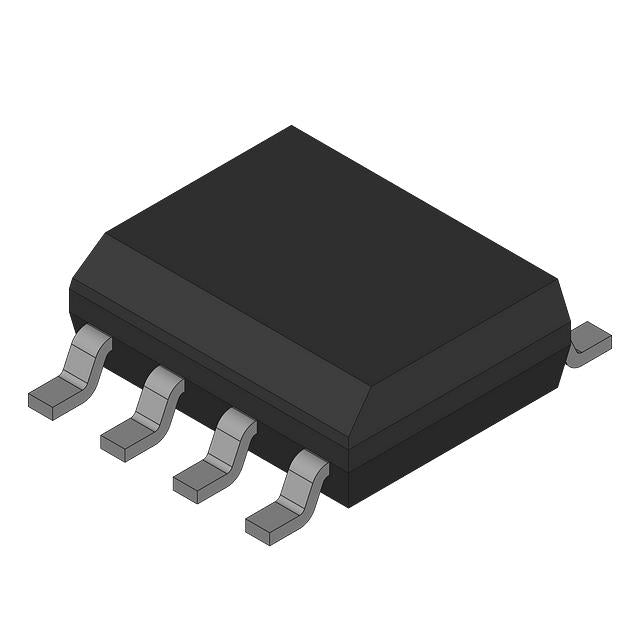

International Rectifier IR2109SPBF
Regular price
Dhs. 4.50
Regular price
Dhs. 4.72
Sale price
Dhs. 4.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.50 | Dhs. 4.50 |
| 15+ | Dhs. 4.34 | Dhs. 65.10 |
| 25+ | Dhs. 4.25 | Dhs. 106.25 |
| 50+ | Dhs. 4.01 | Dhs. 200.50 |
| 100+ | Dhs. 3.54 | Dhs. 354.00 |
| N+ | Dhs. 0.71 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | International Rectifier |
| Product Series | |
| Packaging | Bulk | |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.9V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 150ns, 50ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
IR2109SPBF.pdf
×
