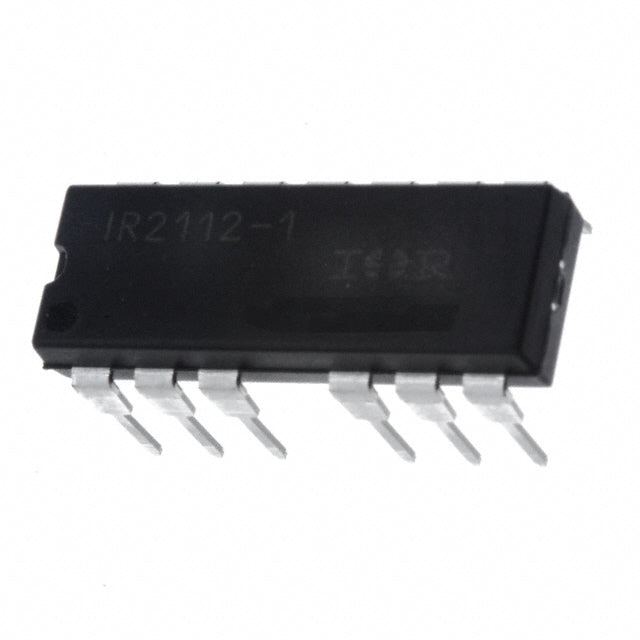

Infineon Technologies IR2112-1
Regular price
$2.51
Regular price
$2.64
Sale price
$2.51
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.51 | $2.51 |
| 15+ | $2.43 | $36.45 |
| 25+ | $2.38 | $59.50 |
| 50+ | $2.24 | $112.00 |
| 100+ | $1.98 | $198.00 |
| N+ | $0.40 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | |
| Packaging | Tube | |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 80ns, 40ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm), 13 Leads |
| Supplier Device Package | 14-PDIP |
IR2112-1.pdf
×
