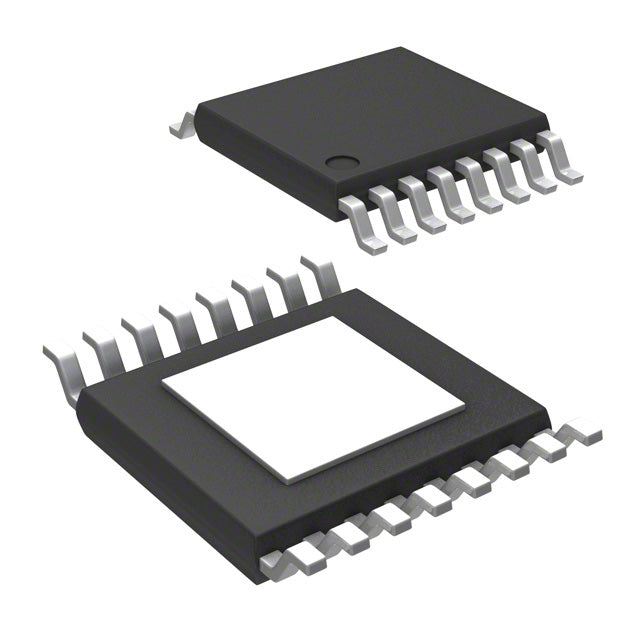

Lumissil Microsystems IS32AP2123-ZLA3-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.48 | $3.48 |
| 15+ | $3.37 | $50.55 |
| 25+ | $3.29 | $82.25 |
| 50+ | $3.11 | $155.50 |
| 100+ | $2.75 | $275.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Lumissil Microsystems |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 24W x 1 @ 4Ohm |
| Voltage - Supply | 4.5V ~ 24V |
| Features | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 16-eTSSOP |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| ROHS |  |
The IS32AP2123 is a high-efficiency mono Class D audio amplifier capable of delivering up to 24W into a 4Ω load. Operating from 4.5V to 24V, it is ideal for battery-powered and automotive applications. Its compact 16-eTSSOP package with exposed pad ensures excellent thermal performance, while the wide temperature range supports demanding environments. Typical uses include portable speakers, automotive audio, and industrial sound systems.
- High Output Power: Delivers 24W into 4Ω, suitable for loud, clear audio in portable and automotive designs.
- Wide Supply Range: Operates from 4.5V to 24V, enabling use with various battery chemistries and vehicle electrical systems.
- Compact Package: 16-eTSSOP with exposed pad saves board space and improves heat dissipation.
- Extended Temperature Range: -40°C to +125°C ensures reliable performance in harsh environments.
Portable Bluetooth Speaker
The IS32AP2123's high efficiency (Class D) and wide supply voltage range allow it to deliver 24W from a single lithium-ion battery pack, making it ideal for high-output portable speakers.
Automotive Audio System
With a -40°C to +125°C temperature range and 24V operation, this amplifier is well-suited for car infotainment systems requiring robust, compact mono amplification.
Smart Home Assistant
Its small 16-eTSSOP package and low external component count enable integration into smart speakers where space is limited but high sound pressure level is needed.
Industrial Alarm Driver
The device can drive high-power alarms or sirens in industrial settings, leveraging its thermal protection and wide voltage tolerance for reliable 24/7 operation.
Line Array Driver
Multiple IS32AP2123 units can be paralleled for distributed audio in commercial sound systems, each delivering up to 24W into 4Ω loads.
- Q: What is the typical output power of the IS32AP2123?
- A: It delivers up to 24W into a 4Ω load from a 24V supply.
- Q: What is the supply voltage range?
- A: The device operates from 4.5V to 24V.
- Q: Is this amplifier Class D or Class AB?
- A: It is a Class D mono amplifier for high efficiency.
- Q: What package is available?
- A: It comes in a 16-lead eTSSOP with exposed pad for thermal management.
- Q: Can it be used in automotive applications?
- A: Yes, its operating temperature range of -40°C to +125°C makes it suitable for automotive and industrial environments.
IS32AP2123-ZLA3-TR.pdf
- Q: What is the typical output power of the IS32AP2123?
- A: It delivers up to 24W into a 4Ω load from a 24V supply.
- Q: What is the supply voltage range?
- A: The device operates from 4.5V to 24V.
- Q: Is this amplifier Class D or Class AB?
- A: It is a Class D mono amplifier for high efficiency.
- Q: What package is available?
- A: It comes in a 16-lead eTSSOP with exposed pad for thermal management.
- Q: Can it be used in automotive applications?
- A: Yes, its operating temperature range of -40°C to +125°C makes it suitable for automotive and industrial environments.
