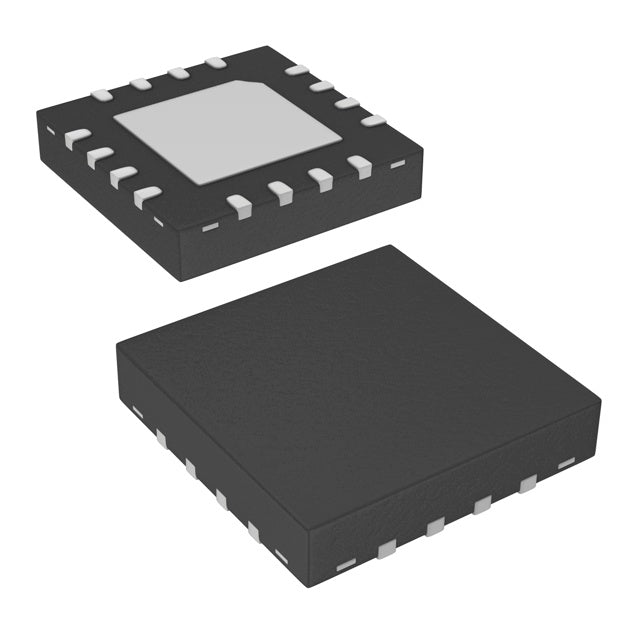

Renesas Electronics Corporation ISL6298-2CR4Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.03 | $4.03 |
| 15+ | $3.90 | $58.50 |
| 25+ | $3.82 | $95.50 |
| 50+ | $3.60 | $180.00 |
| 100+ | $3.18 | $318.00 |
| N+ | $0.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 450mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6.5V |
| Interface | - |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| ROHS |  |
ISL6298-2CR4Z - Single-Cell Lithium-Ion Battery Charger IC
The ISL6298-2CR4Z from Renesas Electronics Corporation is a high-performance, single-cell lithium-ion/polymer battery charger IC designed for portable electronics and embedded applications. This advanced battery management solution delivers reliable charging with programmable features and comprehensive fault protection.
Key Features & Benefits
- Single-Cell Li-Ion/Polymer Charging: Optimized for 4.2V battery pack voltage with constant programmable charging current
- 450mA Maximum Charge Current: Ideal for compact portable devices requiring efficient power management
- Programmable Timer: Customizable charging cycles for enhanced battery lifecycle management
- Over-Temperature Protection: Built-in thermal safeguards ensure safe operation across -20°C to 70°C ambient temperature range
- Compact 16-QFN Package: Space-saving 4x4mm surface mount design with exposed pad for superior thermal performance
- Wide Input Voltage Range: Supports up to 6.5V supply voltage for flexible system integration
Applications
The ISL6298-2CR4Z is perfectly suited for a wide range of portable and battery-powered applications including smartphones, tablets, wireless headsets, portable medical devices, handheld instruments, and IoT edge devices. Its compact footprint and robust protection features make it an excellent choice for space-constrained designs requiring reliable battery management.
Quality & Compliance
This component is RoHS compliant, meeting international environmental standards for electronic components. Renesas Electronics Corporation ensures consistent quality and reliability across all production batches.
Related Products & Resources
Looking for more battery charging solutions? Explore our complete Battery Chargers collection for a comprehensive range of power management ICs and charging solutions.
For technical insights, design tips, and industry updates, visit the HQICKEY Blog. Discover more premium electronic components and semiconductors at HQICKEY.com.
ISL6298-2CR4Z.pdf
