Renesas Electronics Corporation ISL9241HRTZ-T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.95 | $9.95 |
| 15+ | $9.63 | $144.45 |
| 25+ | $9.42 | $235.50 |
| 50+ | $8.90 | $445.00 |
| 100+ | $7.85 | $785.00 |
| N+ | $1.57 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | - |
| Battery Pack Voltage | 3.9 V ~ 18.304 V |
| Voltage - Supply (Max) | 23.4V |
| Interface | I2C, SMBus |
| Operating Temperature | -10°C ~ 100°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

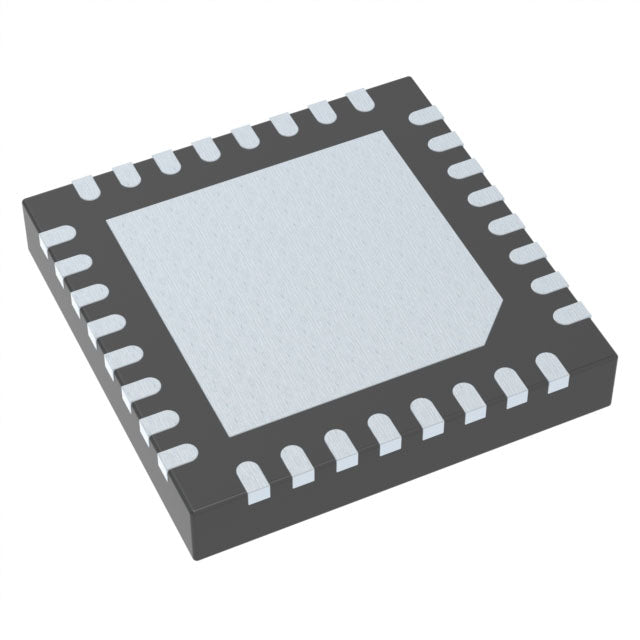

| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (4x4) |
The ISL9241HRTZ-T from Renesas Electronics is a high-performance battery charger IC for 2 to 4 series Lithium Ion cells. It supports a wide battery voltage range from 3.9V to 18.304V and integrates comprehensive fault protection including over current, over temperature, and over voltage. With I2C and SMBus interfaces, it enables precise digital control and telemetry. The device operates from -10°C to 100°C and is packaged in a 32-WFQFN exposed pad package, making it suitable for portable electronics and computing platforms.
- Wide Voltage Range: Supports battery packs from 3.9V to 18.304V, accommodating 2-4 cell configurations.
- Comprehensive Protection: Over current, over temperature, and over voltage safeguards ensure reliable operation.
- Digital Interface: I2C and SMBus enable advanced charge management and system monitoring.
- Extended Temperature Range: Operates from -10°C to 100°C for versatile application use.
Notebook and Ultrabook Batteries
With support for 2-4 Li-Ion cells and a wide voltage range up to 18.304V, this charger is ideal for notebook and ultrabook battery management systems.
Tablets and 2-in-1 Devices
The I2C/SMBus interface allows tight integration with embedded controllers in tablets and convertible laptops for adaptive charging profiles.
Portable Gaming Consoles
Its comprehensive protection suite (over current, over temperature, over voltage) ensures safe high-current charging for demanding portable gaming hardware.
Industrial Handhelds
Operating from -10°C to 100°C, this charger supports industrial handheld scanners and PDAs used in semi-outdoor environments.
High-Capacity Power Banks
For multi-cell power banks, the ISL9241HRTZ-T provides efficient charging with digital monitoring via SMBus for state-of-charge reporting.
- Q: What battery chemistry does the ISL9241HRTZ-T support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can this charger handle?
- A: It supports 2 to 4 cells.
- Q: What is the battery voltage range?
- A: The battery voltage range is 3.9V to 18.304V.
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, and Over Voltage protection.
- Q: What control interfaces are available?
- A: It features I2C and SMBus interfaces.
- Q: What is the operating temperature range?
- A: It operates from -10°C to 100°C.
