Renesas Electronics Corporation ISL9241HRTZ-T7A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 37.61 | Dhs. 37.61 |
| 15+ | Dhs. 36.43 | Dhs. 546.45 |
| 25+ | Dhs. 35.64 | Dhs. 891.00 |
| 50+ | Dhs. 33.66 | Dhs. 1,683.00 |
| 100+ | Dhs. 29.70 | Dhs. 2,970.00 |
| N+ | Dhs. 5.94 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The ISL9241HRTZ-T7A from Renesas Electronics Corporation is a high-performance lithium-ion battery charger IC designed for 2 to 4 cell battery configurations. This advanced charging solution offers programmable current and timer features, making it ideal for portable electronics, power tools, and battery-powered devices requiring reliable and efficient charging capabilities.
Key Features & Benefits
- Multi-Cell Support: Compatible with 2-4 cell Li-Ion battery packs (3.9V to 18.304V)
- Programmable Charging: Customizable constant current charging with programmable timer functionality
- Comprehensive Protection: Built-in over-current, over-temperature, and over-voltage protection ensures safe operation
- Digital Interface: I2C and SMBus communication for easy system integration and monitoring
- Wide Operating Range: Functions reliably from -10°C to 100°C for demanding applications

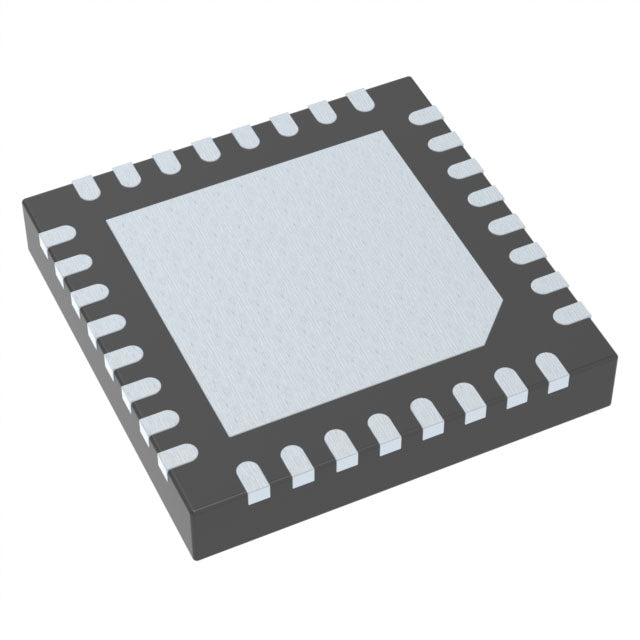

- Compact Design: Surface mount 32-TQFN (4x4mm) package saves valuable PCB space
Applications
This battery charger IC is perfect for:
- Laptop computers and notebooks
- Portable medical devices
- Industrial handheld equipment
- Power tools and cordless devices
- Battery backup systems
- Portable test and measurement instruments
The ISL9241HRTZ-T7A supports a maximum supply voltage of 23.4V and features programmable charging current control. The device is available in Cut Tape (CT) and Tape & Reel (TR) packaging options to suit various production requirements.
Related Resources
Explore our complete range of battery chargers and power management solutions for your design needs. Visit our homepage to discover more electronic components, or check out our technical blog for the latest industry insights and application notes.
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | - |
| Battery Pack Voltage | 3.9 V ~ 18.304 V |
| Voltage - Supply (Max) | 23.4V |
| Interface | I2C, SMBus |
| Operating Temperature | -10°C ~ 100°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (4x4) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
