Renesas Electronics Corporation IW1602-01B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.90 | Dhs. 0.90 |
| 15+ | Dhs. 0.86 | Dhs. 12.90 |
| 25+ | Dhs. 0.85 | Dhs. 21.25 |
| 50+ | Dhs. 0.80 | Dhs. 40.00 |
| 100+ | Dhs. 0.71 | Dhs. 71.00 |
| N+ | Dhs. 0.14 | Price Inquiry |
Request Quote / Inquiry

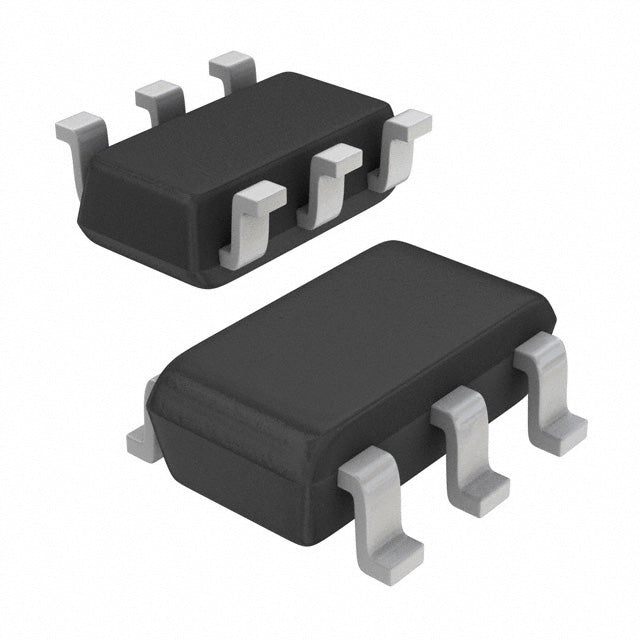

Renesas IW1602-01B Flyback Switching Regulator IC
The IW1602-01B from Renesas Electronics is a high-performance isolated flyback switching regulator designed for AC/DC power conversion applications up to 10W. This compact SOT-23-6 surface mount device delivers reliable power management with comprehensive protection features, making it ideal for industrial, medical, telecom, and consumer electronics applications.
Key Features & Benefits
- Isolated Flyback Topology - Provides galvanic isolation for enhanced safety and noise immunity
- 10W Power Handling - Suitable for low to medium power applications
- 89kHz Switching Frequency - Optimized for efficiency and component size
- 25V Supply Voltage - Wide input voltage compatibility
- Comprehensive Protection - Current limiting, over-temperature, over-voltage, and short circuit protection
- Wide Operating Temperature - -40°C to 150°C (TJ) for demanding environments
- Compact SOT-23-6 Package - Space-saving surface mount design
- RoHS Compliant - Meets environmental standards for global markets
Typical Applications
- Industrial control systems and automation equipment
- Medical device power supplies
- Telecommunications infrastructure
- Consumer electronics AC/DC adapters
- Auxiliary power supplies
- Isolated power conversion modules
Quality & Compliance
This component is supplied in Tape & Reel packaging for automated assembly processes. Full traceability documentation and RoHS/REACH compliance certificates are available upon request. All products are sourced from authorized distributors with complete chain-of-custody verification.
Design Support
Comprehensive technical resources including datasheets, application notes, reference designs, and design tools are available to support your engineering team throughout the design-in process.
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 25V |
| Duty Cycle | - |
| Frequency - Switching | 89kHz |
| Power (Watts) | 10 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
