Renesas Electronics Corporation IW1602-02B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.90 | Dhs. 0.90 |
| 15+ | Dhs. 0.86 | Dhs. 12.90 |
| 25+ | Dhs. 0.85 | Dhs. 21.25 |
| 50+ | Dhs. 0.80 | Dhs. 40.00 |
| 100+ | Dhs. 0.71 | Dhs. 71.00 |
| N+ | Dhs. 0.14 | Price Inquiry |
Request Quote / Inquiry

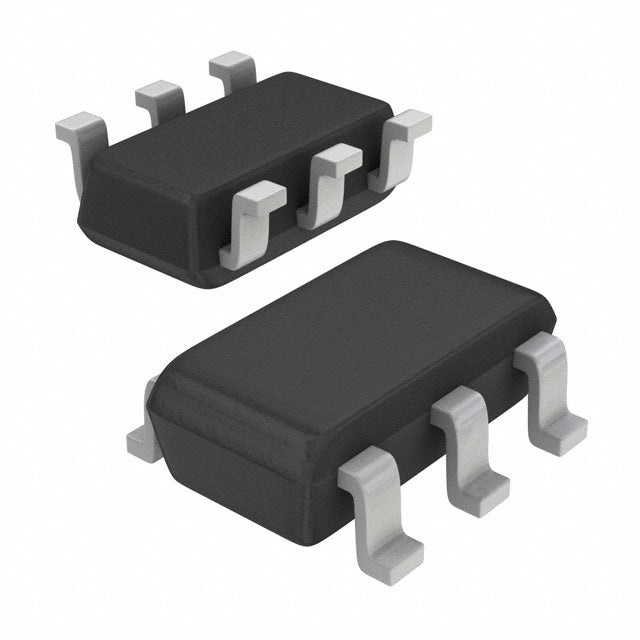

Renesas IW1602-02B Flyback PWM Controller IC
The IW1602-02B from Renesas Electronics is a high-performance isolated flyback PWM controller IC designed for offline AC-DC power conversion applications up to 10W. This compact SOT-23-6 packaged controller delivers reliable power management with comprehensive fault protection features including current limiting, over-temperature, over-voltage, and short circuit protection.
Key Features & Benefits
- 10W Power Capability – Ideal for low-to-medium power AC-DC converters
- Isolated Flyback Topology – Provides galvanic isolation for safety-critical applications
- 89kHz Switching Frequency – Optimized for efficiency and compact transformer design
- 25V Supply Voltage – Wide operating range for flexible design
- Extended Temperature Range – Operates from -40°C to 150°C (TJ) for industrial and automotive applications
- Comprehensive Protection – Built-in current limiting, over-temperature, over-voltage, and short circuit protection
- Compact SOT-23-6 Package – Space-saving surface mount design
- RoHS Compliant – Meets environmental standards
Typical Applications
- AC-DC power adapters and chargers
- Auxiliary power supplies
- Industrial control systems
- Smart home devices
- LED lighting drivers
- Consumer electronics
Why Choose IW1602-02B?
Renesas Electronics' IW1602-02B offers design engineers a proven, reliable solution for isolated flyback power conversion. The integrated protection features reduce external component count and enhance system reliability, while the compact SOT-23-6 package enables high-density PCB layouts. Backed by Renesas' reputation for quality and our authorized distributor support, this controller IC delivers the performance and peace of mind your design requires.
Authorized Distributor
We are an authorized distributor of Renesas Electronics components, ensuring 100% authentic parts with full traceability, manufacturer warranty support, and access to technical resources including datasheets and reference designs. All products ship with RoHS/REACH compliance documentation.
Design Support
Our engineering team provides design-in support to help you successfully integrate the IW1602-02B into your application. Contact us for technical assistance, reference designs, and volume pricing.
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 25V |
| Duty Cycle | - |
| Frequency - Switching | 89kHz |
| Power (Watts) | 10 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
