Renesas Electronics Corporation IW1602H-01
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.90 | Dhs. 0.90 |
| 15+ | Dhs. 0.86 | Dhs. 12.90 |
| 25+ | Dhs. 0.85 | Dhs. 21.25 |
| 50+ | Dhs. 0.80 | Dhs. 40.00 |
| 100+ | Dhs. 0.71 | Dhs. 71.00 |
| N+ | Dhs. 0.14 | Price Inquiry |
Request Quote / Inquiry

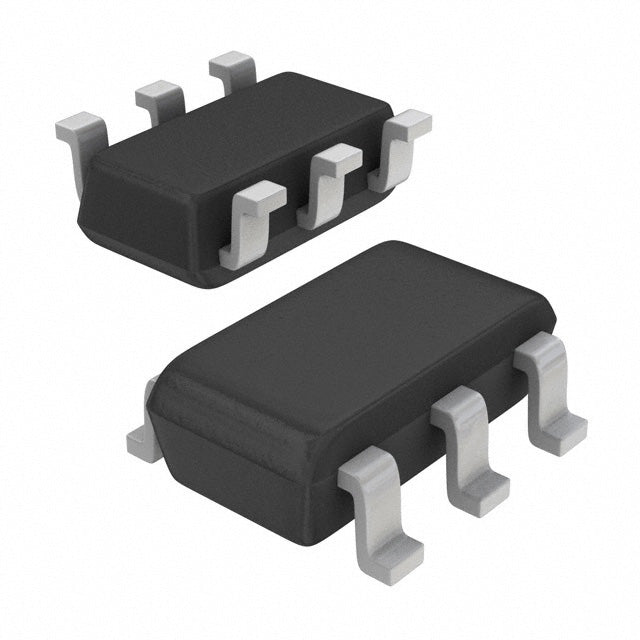

Renesas IW1602H-01 Flyback PWM Controller IC
The IW1602H-01 from Renesas Electronics is a high-performance flyback PWM controller IC designed for isolated offline power supply applications up to 10W. This compact SOT-23-6 surface mount device operates at 89kHz switching frequency with a 25V supply voltage, making it ideal for space-constrained designs requiring reliable AC-DC conversion.
Key Features & Benefits
- Isolated Flyback Topology - Provides galvanic isolation for safety-critical applications
- 10W Power Output - Suitable for low-to-medium power AC-DC converters
- 89kHz Switching Frequency - Optimized for efficiency and EMI performance
- Comprehensive Protection - Current limiting, over-temperature, over-voltage, and short circuit protection
- Wide Operating Temperature - -40°C to 150°C junction temperature range for industrial applications
- Compact SOT-23-6 Package - Minimizes PCB footprint for high-density designs
- RoHS Compliant - Meets environmental standards for global markets
Applications
This PWM controller is ideal for auxiliary power supplies, standby power circuits, LED drivers, battery chargers, smart home devices, industrial control systems, and consumer electronics requiring compact, efficient AC-DC conversion.
Why Choose IW1602H-01?
As an authorized distributor, we provide 100% authentic Renesas components with full traceability, datasheets, and technical support. All products are RoHS/REACH compliant and available in production-ready tape and reel packaging for automated assembly.
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 25V |
| Duty Cycle | - |
| Frequency - Switching | 89kHz |
| Power (Watts) | 10 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
