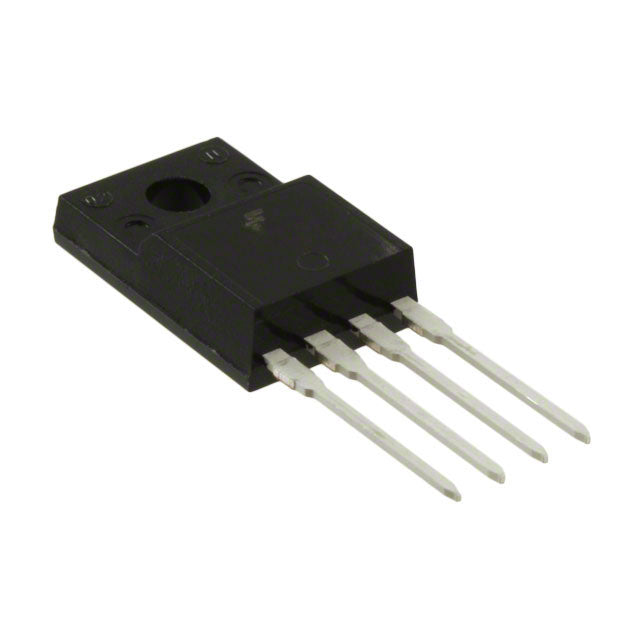

onsemi KA1H0165RTU
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 30V |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-4 Full Pack |
| Supplier Device Package | TO-220F-4L |
| ROHS |  |
onsemi KA1H0165RTU - FPS™ Offline Switching Controller
The KA1H0165RTU from onsemi is a high-performance AC/DC offline switching controller featuring the advanced FPS™ (Fairchild Power Switch) technology. Designed for flyback and forward converter topologies, this controller delivers reliable power management with comprehensive fault protection for industrial, telecommunications, and consumer electronics applications.
Key Features
- 650V Breakdown Voltage - High-voltage capability for universal AC input designs
- 100kHz Switching Frequency - Optimized for efficiency and compact transformer design
- Integrated Protection - Current limiting, over-load, over-temperature, and over-voltage safeguards
- Soft Start Control - Reduces inrush current and stress on components
- Wide Operating Range - 10V to 30V supply voltage, -25°C to 85°C ambient temperature
- TO-220F-4L Package - Through-hole mounting for robust assembly and thermal management
Applications
Ideal for AC/DC power supplies, battery chargers, LED drivers, industrial control systems, and telecommunications equipment requiring reliable offline switching with comprehensive protection features.
Complete Specifications
KA1H0165RTU.pdf
×
