STMicroelectronics L6590D
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.68 | Dhs. 7.68 |
| 15+ | Dhs. 7.44 | Dhs. 111.60 |
| 25+ | Dhs. 7.28 | Dhs. 182.00 |
| 50+ | Dhs. 6.88 | Dhs. 344.00 |
| 100+ | Dhs. 6.07 | Dhs. 607.00 |
| N+ | Dhs. 1.21 | Price Inquiry |
Request Quote / Inquiry
STMicroelectronics L6590D Offline Flyback Switching Controller
The L6590D from STMicroelectronics is a high-performance AC/DC offline flyback switching controller designed for reliable power conversion in industrial, telecommunications, and consumer electronics applications. This integrated controller features a 700V breakdown voltage, 65kHz switching frequency, and delivers up to 15W of power with exceptional efficiency and protection.
Key Features & Benefits
- High Voltage Capability: 700V breakdown voltage for robust performance in demanding applications
- Integrated Protection: Current limiting, over-temperature, and over-voltage fault protection ensure long-term reliability
- Wide Operating Range: 6.5V to 18V supply voltage with 14.5V start-up voltage

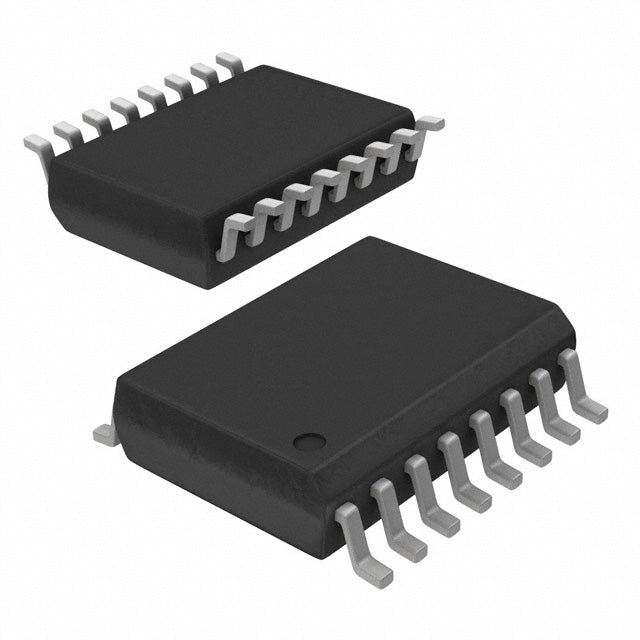

- Compact Surface Mount Package: 16-SOIC (7.50mm width) for space-efficient PCB layouts
- Extended Temperature Range: -40°C to 150°C junction temperature for harsh environments
- RoHS Compliant: Environmentally friendly and meets global compliance standards
Applications
Ideal for aerospace, automotive, industrial control systems, telecommunications equipment, medical devices, and consumer electronics requiring isolated power conversion with high reliability and traceability.
Why Choose the L6590D? This controller combines proven STMicroelectronics quality with comprehensive protection features and wide operating margins, making it the reliable choice for OEMs and EMS providers requiring full traceability and long lifecycle support.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 14.5 V |
| Voltage - Supply (Vcc/Vdd) | 6.5V ~ 18V |
| Duty Cycle | 70% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 15 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SO |
| ROHS |  |
L6590D.pdf
