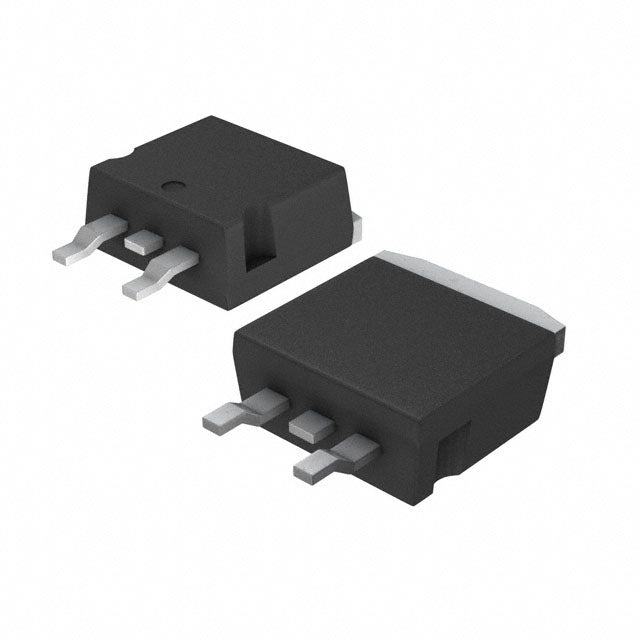

STMicroelectronics L7809ABD2T
Regular price
$0.45
Regular price
$0.47
Sale price
$0.45
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.45 | $0.45 |
| 15+ | $0.43 | $6.45 |
| 25+ | $0.42 | $10.50 |
| 50+ | $0.40 | $20.00 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 61dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| ROHS |  |
L7809ABD2T.pdf
×
