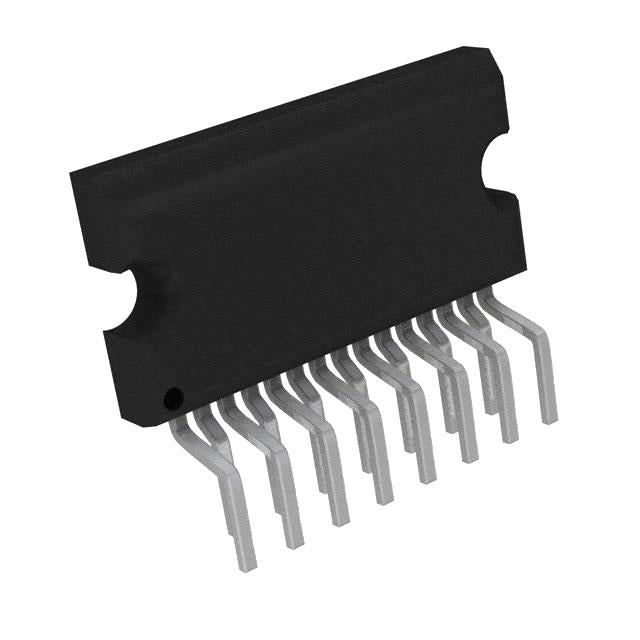

Sanyo LA42105-E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.90 | Dhs. 3.90 |
| 15+ | Dhs. 3.75 | Dhs. 56.25 |
| 25+ | Dhs. 3.67 | Dhs. 91.75 |
| 50+ | Dhs. 3.47 | Dhs. 173.50 |
| 100+ | Dhs. 3.06 | Dhs. 306.00 |
| N+ | Dhs. 0.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Sanyo |
| Product Series | |
| Packaging | Bulk | |
| Part Status | Active |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 5W x 1 @ 8Ohm |
| Voltage - Supply | 9.5V ~ 16V |
| Features | - |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 15-HZIP |
| Package / Case | 15-SSIP Exposed Pad, Formed Leads |
The LA42105-E is a mono Class AB audio amplifier from Sanyo, delivering 5W into an 8Ohm load. Operating from 9.5V to 16V, it is designed for reliable audio amplification in portable speakers, radios, and intercoms. The through-hole 15-HZIP package with exposed pad aids in thermal management, ensuring stable performance across its operating temperature range.
- High Output Power: Delivers 5W into 8Ohm, suitable for moderate-volume audio applications.
- Class AB Efficiency: Balances power efficiency with low distortion for clear sound.
- Thermal Management: Exposed pad in 15-HZIP package enhances heat dissipation.
- Wide Voltage Range: Operates from 9.5V to 16V, compatible with various power supplies.
Portable Bluetooth Speakers
The LA42105-E's 5W output into 8Ohm is ideal for powering a single speaker in compact Bluetooth speakers, providing sufficient volume for personal audio.
AM/FM Radios
Its Class AB operation ensures low distortion and good efficiency, making it suitable for battery-powered AM/FM radios where audio clarity is important.
Intercom Systems
With a robust through-hole package and wide operating temperature range (-20°C to 75°C), this IC is reliable for intercom systems in residential or commercial settings.
Line Drivers
The LA42105-E can be used as a line driver to amplify audio signals for transmission over longer distances in distributed audio systems.
Alarm Drivers
Its 5W output capability makes it effective for driving alarm speakers or sirens in security systems, ensuring audible alerts.
DIY Audio Projects
Hobbyists can leverage the through-hole 15-HZIP package for easy prototyping of mono audio amplifiers in custom projects.
| Model | Package | Voltage Range | Output Power (Typical) |
|---|---|---|---|
| LA42105-E | 15-HZIP | 9.5V ~ 16V | 5W x 1 @ 8Ohm |
| LA42105-E-ON | 15-HZIP | 9.5V ~ 16V | 5W x 1 @ 8Ohm |
| SSM2131P | 8-PDIP | 8V ~ 20V | Not specified |
- Q: What is the output power of the LA42105-E?
- A: It delivers 5W into an 8Ohm load.
- Q: What is the supply voltage range?
- A: The supply voltage range is 9.5V to 16V.
- Q: Is this a mono or stereo amplifier?
- A: It is a 1-channel (mono) amplifier.
- Q: What amplifier class does it use?
- A: It is a Class AB amplifier.
- Q: What package is the LA42105-E available in?
- A: It comes in a 15-HZIP through-hole package with exposed pad and formed leads.
LA42105-E.pdf
- Q: What is the output power of the LA42105-E?
- A: It delivers 5W into an 8Ohm load.
- Q: What is the supply voltage range?
- A: The supply voltage range is 9.5V to 16V.
- Q: Is this a mono or stereo amplifier?
- A: It is a 1-channel (mono) amplifier.
- Q: What amplifier class does it use?
- A: It is a Class AB amplifier.
- Q: What package is the LA42105-E available in?
- A: It comes in a 15-HZIP through-hole package with exposed pad and formed leads.
