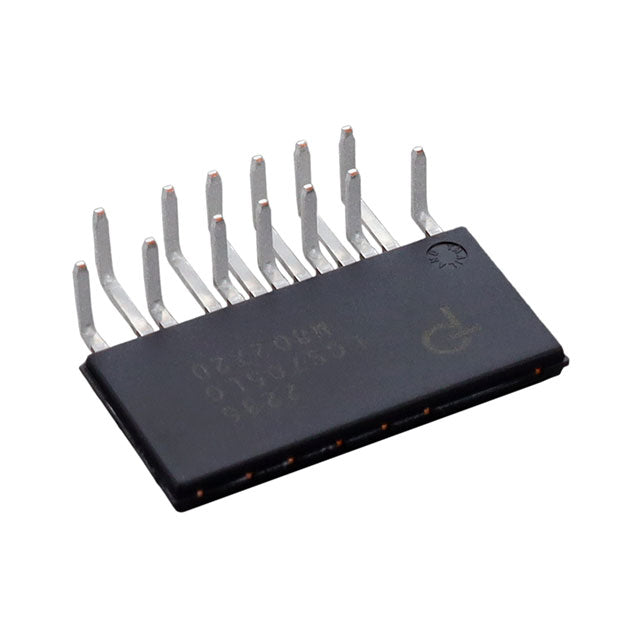

Power Integrations LCS701LG
Regular price
$4.38
Regular price
$4.61
Sale price
$4.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.38 | $4.38 |
| 15+ | $4.24 | $63.60 |
| 25+ | $4.15 | $103.75 |
| 50+ | $3.92 | $196.00 |
| 100+ | $3.46 | $346.00 |
| N+ | $0.69 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | HiperLCS™ |
| Packaging | Tube | |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | On/Off |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1Ohm |
| Current - Output / Channel | - |
| Current - Peak Output | 7.7A |
| Voltage - Supply | 11.4V ~ 15V |
| Voltage - Load | 11.4V ~ 15V |
| Features | Auto Restart, Slew Rate Controlled |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16K |
| ROHS |  |
LCS701LG.pdf
×
