STMicroelectronics LDK220PU27R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.71 | $0.71 |
| 15+ | $0.47 | $7.05 |
| 25+ | $0.46 | $11.50 |
| 50+ | $0.43 | $21.50 |
| 100+ | $0.38 | $38.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 90 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB ~ 50dB (120Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-DFN (1.2x1.3) |
| ROHS |  |

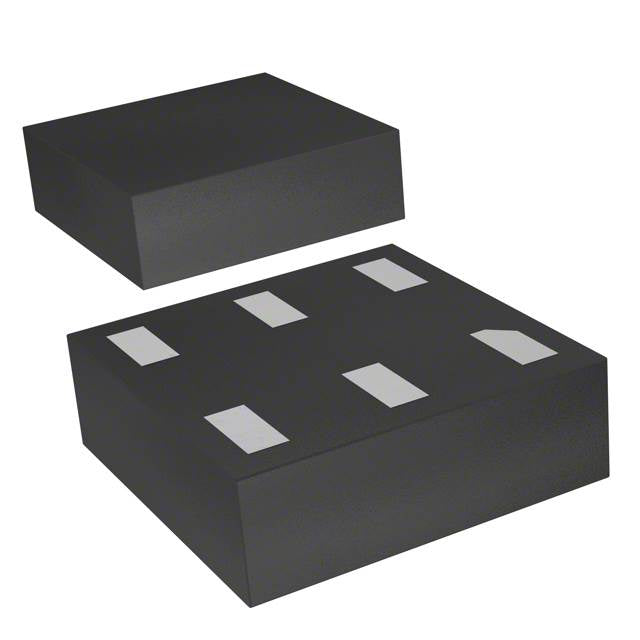

The LDK220PU27R from STMicroelectronics is a low dropout linear regulator delivering a fixed 2.7V output with up to 200mA current. Its 90µA quiescent current and 0.35V dropout at full load make it efficient for battery-operated devices. The compact 6-DFN package (1.2x1.3mm) saves board space, while PSRR of 55dB at 120Hz ensures clean power for sensitive analog circuits.
- Extended Battery Life: Ultra-low 90µA quiescent current minimizes standby power consumption in portable devices.
- Space-Saving Design: The 1.2x1.3mm DFN package fits high-density PCB layouts for wearables and IoT modules.
- Stable Output: 55dB PSRR at 120Hz effectively rejects low-frequency noise from power supplies.
- Low Dropout: 0.35V dropout at 200mA allows operation from nearly depleted batteries.
Battery-Powered IoT Sensors
The 90µA quiescent current and 200mA output make it ideal for always-on IoT sensor nodes, extending battery life while powering microcontrollers and sensors.
Portable Medical Devices
With a stable 2.7V output and low dropout of 0.35V, it ensures reliable operation for glucose monitors and wearable health trackers powered by 3V coin cells.
Wireless Communication Modules
The PSRR of 55dB at 120Hz helps filter low-frequency noise, providing clean power to RF transceivers and improving signal integrity.
Industrial Control Systems
Its compact DFN package and 200mA capability suit space-constrained PLC I/O modules requiring a regulated 2.7V rail.
Audio Equipment
The 50dB PSRR at 10kHz reduces high-frequency ripple, ensuring low-noise power for portable audio DACs and amplifiers.
Wearable Electronics
The 1.2x1.3mm footprint fits tiny PCB designs for smartwatches and fitness bands, delivering stable power to low-power processors.
- Q: What is the output voltage of the LDK220PU27R?
- A: The LDK220PU27R provides a fixed output voltage of 2.7V.
- Q: What is the maximum output current?
- A: This LDO can deliver up to 200mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.7V up to the absolute maximum rating (typically 5.5V for this series).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.35V at a 200mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 90µA, making it suitable for battery-powered applications.
- Q: What package is available?
- A: It comes in a compact 6-DFN (1.2x1.3mm) package.
