STMicroelectronics LEOAD128PT-D
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $1,431.50 | $21,472.50 |
| 25+ | $1,400.38 | $35,009.50 |
| 50+ | $1,322.58 | $66,129.00 |
| 100+ | $1,166.99 | $116,699.00 |
| N+ | $233.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | - |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.55V ~ 3.75V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |

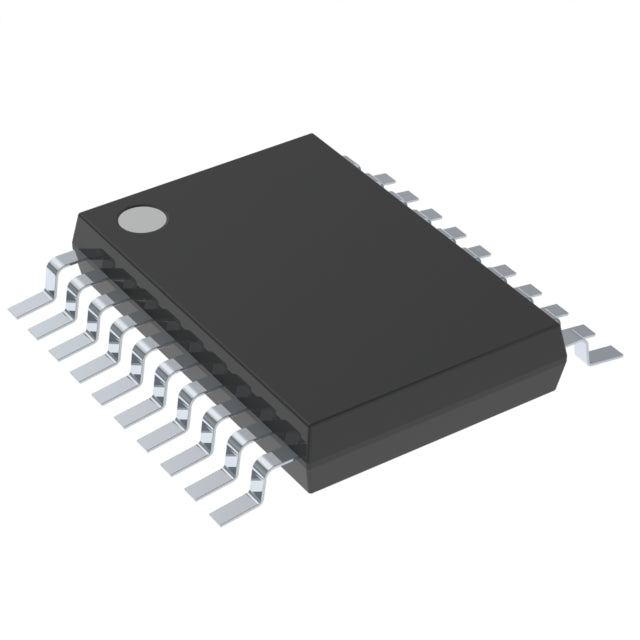

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
The LEOAD128PT-D from STMicroelectronics is a 12-bit, 1M SPS 8-channel ADC with an SPI interface. Its MUX-S/H-ADC architecture allows sequential sampling of multiple inputs, making it perfect for multi-sensor systems. With a wide temperature range and compact 20-TSSOP package, it is ideal for industrial, automotive, and building automation applications.
- 8-Channel Multiplexing: Monitor multiple signals with one device.
- Fast Sampling: 1M SPS ensures responsive data acquisition.
- SPI Interface: Easy integration with microcontrollers.
- Wide Temperature Range: Operates from -40°C to 125°C.
Multi-Sensor Data Acquisition
Eight multiplexed channels allow monitoring of multiple sensors with a single ADC, reducing system cost.
Industrial Automation
The 1M SPS sampling rate and SPI interface enable fast, reliable reading of PLC analog inputs.
Automotive Control
Wide temperature range (-40°C to 125°C) supports engine control and battery management systems.
Building Automation
Multiple channels are ideal for HVAC monitoring and energy management systems.
Portable Instrumentation
Low pin count and SPI interface make it suitable for handheld multimeters and data loggers.
- Q: What is the resolution of the LEOAD128PT-D?
- A: It is a 12-bit ADC.
- Q: What is the sampling rate?
- A: The sampling rate is 1M SPS.
- Q: How many channels does it have?
- A: It has 8 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture.
- Q: What is the package type?
- A: It comes in a 20-TSSOP package.
