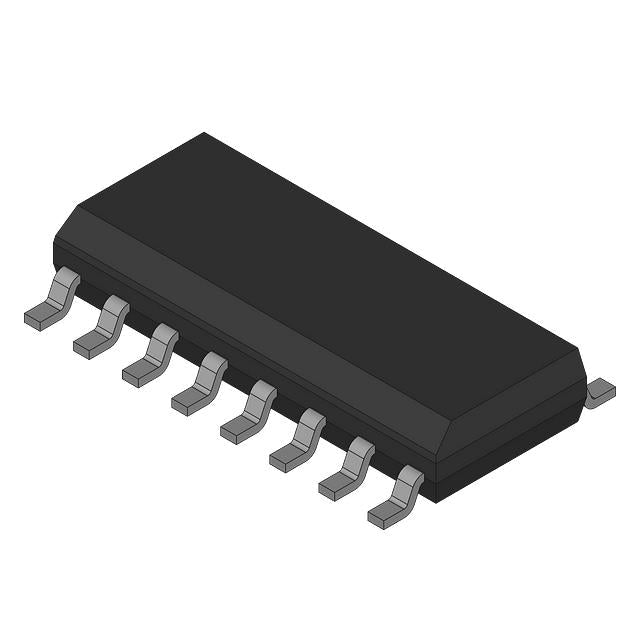

National Semiconductor LF13201MX
Regular price
$13.96
Regular price
$3.49
Sale price
$13.96
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.96 | $13.96 |
| 15+ | $3.21 | $48.15 |
| 25+ | $3.14 | $78.50 |
| 50+ | $2.97 | $148.50 |
| 100+ | $2.62 | $262.00 |
| N+ | $0.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 250Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 90ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 3pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
LF13201MX.pdf
×
