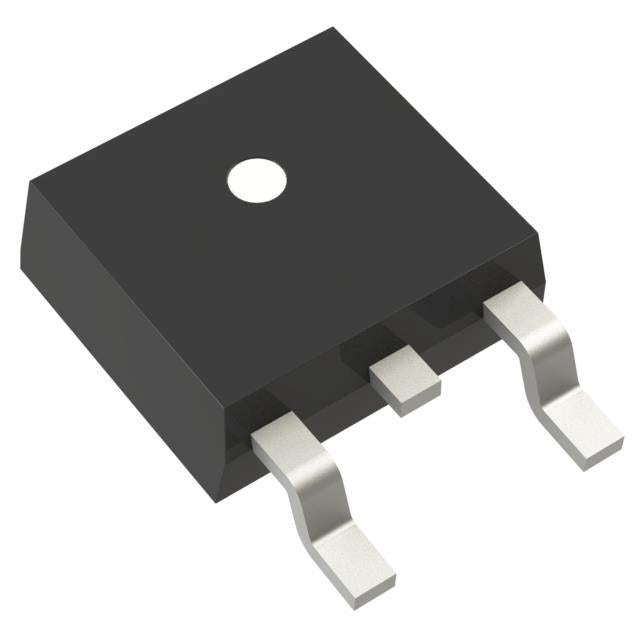

Texas Instruments LM1117IDT-5.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.61 | $1.61 |
| 15+ | $1.55 | $23.25 |
| 25+ | $1.52 | $38.00 |
| 50+ | $1.44 | $72.00 |
| 100+ | $1.27 | $127.00 |
| N+ | $0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| ROHS |  |
The LM1117IDT-5.0/NOPB is a fixed 5V low dropout linear regulator from Texas Instruments. It delivers up to 800mA of output current with a dropout voltage of just 1.2V at full load. The device features a low quiescent current of 5mA and excellent ripple rejection of 75dB at 120Hz, making it suitable for noise-sensitive applications. Housed in a compact TO-252-3 package, it offers thermal protection and current limiting for robust operation in industrial and consumer electronics.
- High Output Current: 800mA capability supports power-hungry digital loads without external pass transistors.
- Excellent Ripple Rejection: 75dB PSRR at 120Hz ensures clean output for audio and precision analog circuits.
- Low Dropout: 1.2V dropout allows efficient regulation from 6.2V inputs, reducing power dissipation.
- Thermal Protection: Internal current limiting and thermal shutdown safeguard the regulator and load.
5V Digital Logic Power
Provides a stable 5V rail for microcontrollers, FPGAs, and digital ICs. The 800mA capacity supports multiple peripherals, and the 75dB PSRR at 120Hz filters mains ripple effectively.
Industrial Sensor Interfaces
Regulates 5V for analog sensor front-ends. Low output noise and high PSRR ensure accurate ADC readings in noisy factory environments.
Automotive Infotainment
Converts vehicle battery voltage (12V) down to 5V for USB hubs and display controllers. The TO-252 package handles thermal dissipation from high input-to-output differentials.
Battery-Powered Instruments
Regulates 5V from a 6-9V battery pack. The 5mA quiescent current is acceptable for bench instruments where battery life is secondary to stability.
Networking Equipment
Powers 5V PHY transceivers and switch ICs. The 1.2V dropout allows operation from a 6.2V rail with margin, ensuring reliable link stability.
Audio Preamplifiers
Provides clean 5V for op-amp stages. The 75dB PSRR at 120Hz rejects power supply hum, preserving audio signal integrity.
- Q: What is the fixed output voltage of the LM1117IDT-5.0/NOPB?
- A: The fixed output voltage is 5.0V, ideal for 5V logic and microcontroller rails.
- Q: What is the maximum output current?
- A: It can deliver up to 800mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 6.2V up to 15V (absolute max), with typical operation from 6.5V to 12V.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 1.2V at full 800mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 5mA, which is acceptable for moderate power applications.
- Q: What package is available?
- A: It comes in a TO-252-3 (DPAK) surface-mount package.
