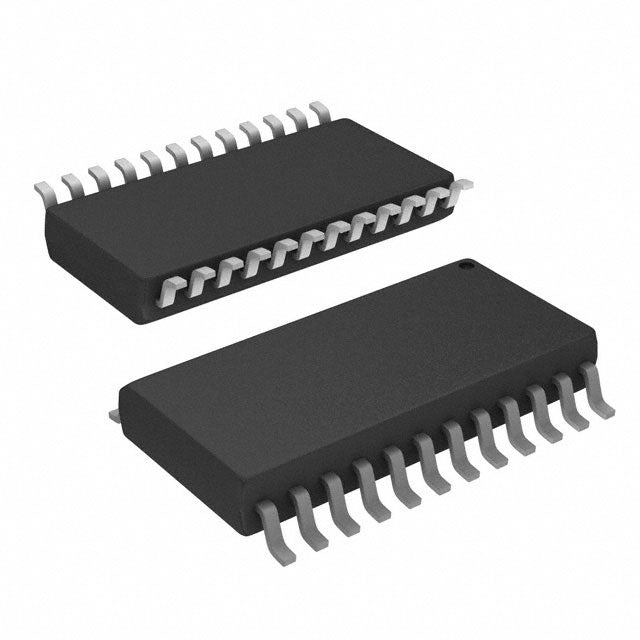

Microchip Technology LM2575-5.0YWM-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.28 | $5.28 |
| 15+ | $1.21 | $18.15 |
| 25+ | $1.19 | $29.75 |
| 50+ | $1.12 | $56.00 |
| 100+ | $0.99 | $99.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 1A |
| Frequency - Switching | 52kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The LM2575 is a reliable Buck DC-DC converter from Microchip Technology, delivering a fixed 5V output from a 4V to 40V input. It supports up to 1A of load current and switches at 52kHz, offering a simple, efficient solution for automotive, industrial, and telecom applications. The device includes built-in protection features for robust operation.
- Universal Input Range: 4V to 40V input accommodates a wide variety of power sources, from batteries to rectified AC.
- Simple Design: Requires only a few external components, reducing design time and board space.
- Stable 5V Output: Ideal for powering 5V logic, sensors, and analog circuits with up to 1A.
- Thermal and Current Protection: Ensures safe operation under overload and high-temperature conditions.
Automotive Sensor Power
Provides a stable 5V rail for sensors, ADCs, and microcontrollers in automotive ECUs, handling 12V/24V battery fluctuations.
Industrial Process Control
Steps down 24V industrial supplies to 5V for analog front-ends, data loggers, and control loops in factory automation.
Telecom Line Cards
Converts 48V backplane power to 5V for line drivers, DSPs, and interface circuits in telecom infrastructure.
Consumer Appliances
Regulates 5V for touch panels, displays, and control boards in white goods powered by 12V-24V internal rails.
Test and Measurement Equipment
Provides a clean 5V supply for precision analog circuits in bench instruments, with low ripple and reliable regulation.
- Q: What type of converter is the LM2575-5.0YWM-TR?
- A: It is a Buck (step-down) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 4V to 40V.
- Q: What is the output voltage?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous output current.
- Q: What is the switching frequency?
- A: The switching frequency is 52kHz.
- Q: What package is available?
- A: It is available in a 24-SOIC (0.295", 7.50mm Width) package.
