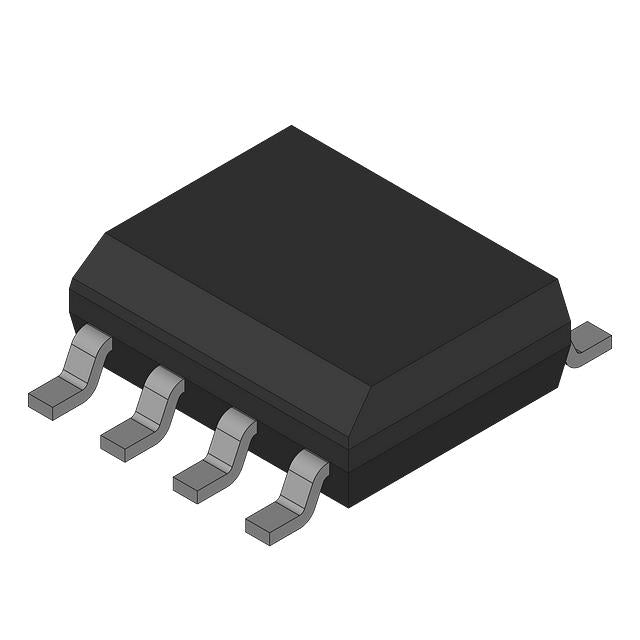

National Semiconductor LM2724AMX
Regular price
$1.32
Regular price
$1.39
Sale price
$1.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 4.3V ~ 6.8V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3.2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 28 V |
| Rise / Fall Time (Typ) | 17ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
LM2724AMX.pdf
×
