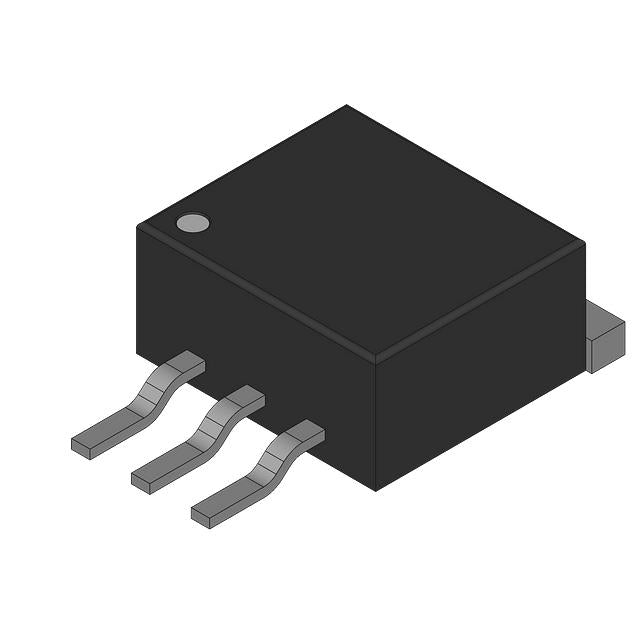

National Semiconductor LM2937ES-15-NS
Regular price
$1.63
Regular price
$1.72
Sale price
$1.63
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $1.58 | $23.70 |
| 25+ | $1.55 | $38.75 |
| 50+ | $1.46 | $73.00 |
| 100+ | $1.29 | $129.00 |
| N+ | $0.26 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 20 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263 (DDPAK-3) |
LM2937ES-15-NS.pdf
×
