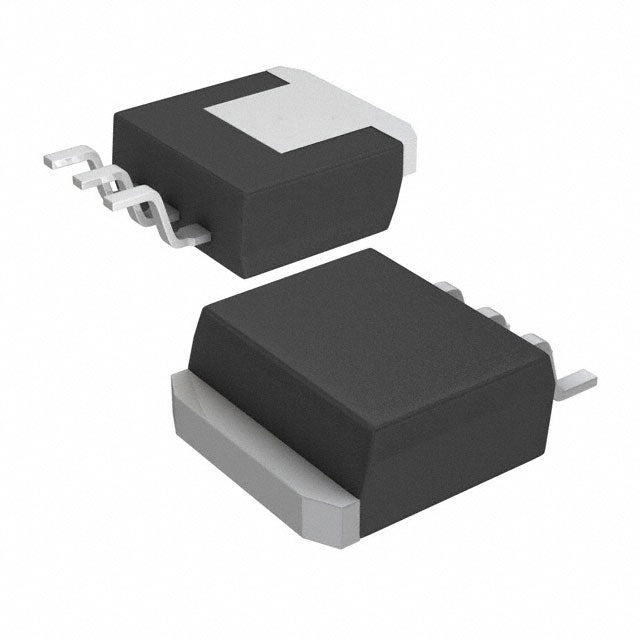

Texas Instruments LM2940CSX-15
Regular price
$0.94
Regular price
$0.99
Sale price
$0.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.94 | $0.94 |
| 15+ | $0.91 | $13.65 |
| 25+ | $0.89 | $22.25 |
| 50+ | $0.84 | $42.00 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | 66dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263 (DDPAK-3) |
LM2940CSX-15.pdf
×
