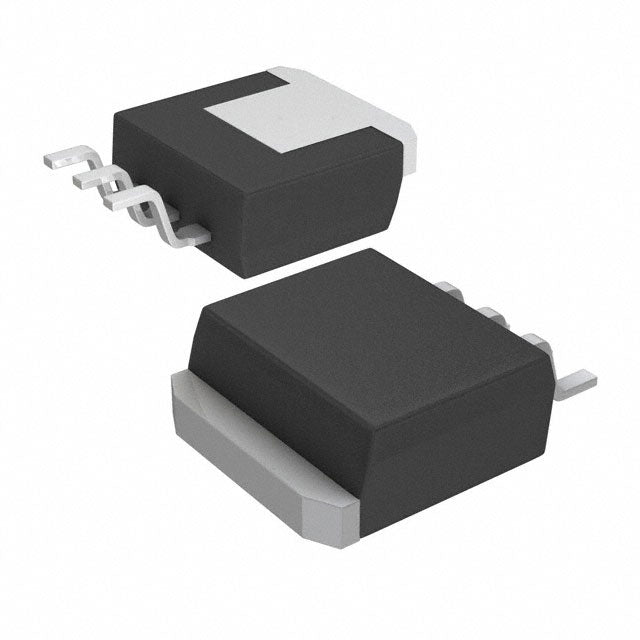

Texas Instruments LM2940S-9.0
Regular price
$1.05
Regular price
$1.11
Sale price
$1.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.05 | $1.05 |
| 15+ | $1.02 | $15.30 |
| 25+ | $1.00 | $25.00 |
| 50+ | $0.94 | $47.00 |
| 100+ | $0.83 | $83.00 |
| N+ | $0.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | 64dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263 (DDPAK-3) |
LM2940S-9.0.pdf
×
