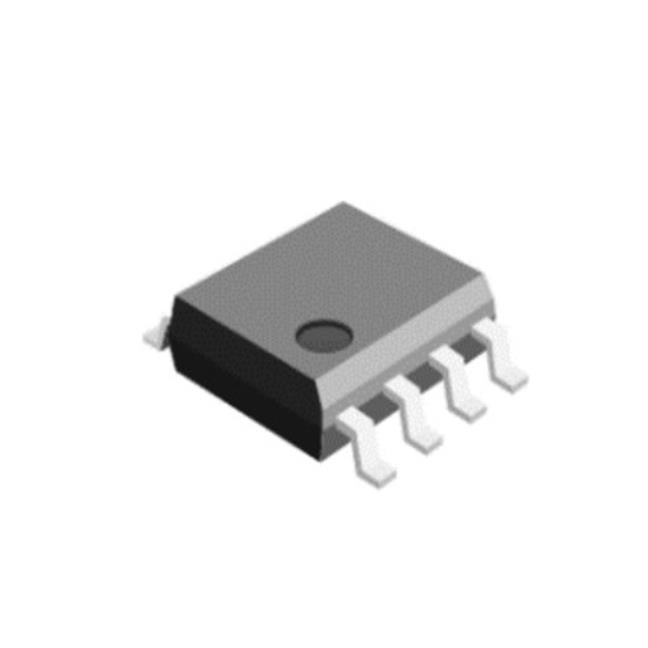

TAEJIN LM2951D-5.0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.80 | $0.80 |
| 15+ | $0.18 | $2.70 |
| 25+ | $0.18 | $4.50 |
| 50+ | $0.17 | $8.50 |
| 100+ | $0.15 | $15.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | TAEJIN |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| ROHS |  |
The TAEJIN LM2951D-5.0 is a fixed 5.0V low-dropout linear regulator designed to deliver up to 100mA of current. Featuring a dropout voltage of 450mV at full load and a quiescent current of 120µA, it provides efficient and stable power conversion from higher voltage rails. The 8-SOP package offers a robust, through-hole or surface-mount option for a wide range of industrial, automotive, and consumer applications requiring a reliable 5V supply.
- Standard 5V Output: Directly powers 5V logic and microcontrollers without additional conversion stages.
- Wide Input Flexibility: Can step down from common 9V, 12V, or 24V rails, making it versatile for multi-voltage systems.
- Low Quiescent Current: The 120µA Iq helps minimize power consumption in battery-backed or always-on applications.
- Reliable 8-SOP Package: Industry-standard package with good thermal performance for 100mA loads.
Microcontroller Power Supplies
The 5.0V output is ideal for powering 5V logic, microcontrollers, and peripheral ICs in embedded systems, providing a stable and clean supply from a higher input voltage like 9V or 12V.
Industrial Control Systems
With a 100mA output and 8-SOP package, this regulator is well-suited for powering op-amps, comparators, and small relays in industrial control panels, ensuring reliable operation in noisy environments.
Automotive Sensor Modules
For automotive applications, the LM2951D-5.0 can regulate a 12V vehicle battery down to 5V for sensors like throttle position or temperature sensors, providing a stable reference for the ECU.
Home Appliance Control Boards
In washing machines, microwaves, and refrigerators, this LDO provides a regulated 5V rail for the control panel microcontroller and user interface, improving reliability over unregulated supplies.
Test and Measurement Equipment
The low quiescent current and stable output make it suitable for portable multimeters and handheld testers, where battery life and measurement accuracy are critical.
Networking Equipment
For routers and switches, the LM2951D-5.0 can power small management processors and PHY chips, providing a clean 5V supply from a 12V main rail.
- Q: What is the output voltage of the LM2951D-5.0?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can supply up to 100mA of output current.
- Q: What is the input voltage range?
- A: The input voltage must be greater than 5.0V plus the dropout voltage (0.45V), typically up to 30V depending on absolute maximum ratings.
- Q: What is the dropout voltage?
- A: The dropout voltage is 450mV at a 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 120µA.
- Q: What package is available?
- A: It is available in the 8-SOP package.
