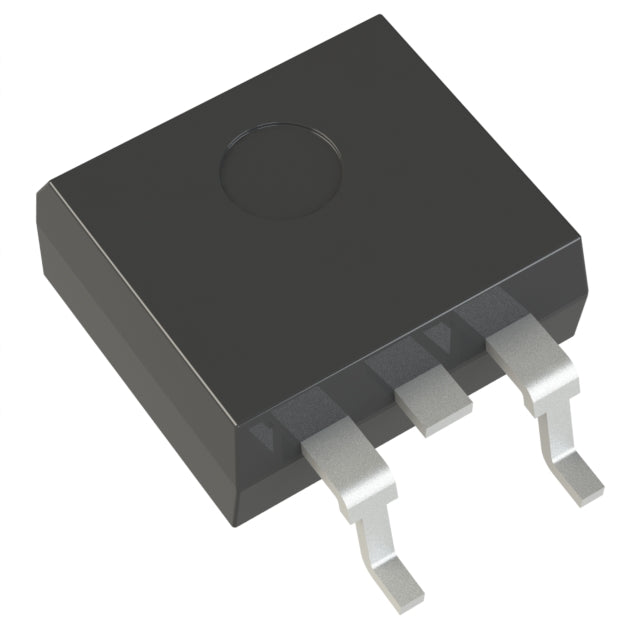

onsemi LM337D2TR4G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.00 | $2.00 |
| 15+ | $1.93 | $28.95 |
| 25+ | $1.89 | $47.25 |
| 50+ | $1.79 | $89.50 |
| 100+ | $1.58 | $158.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -40V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Voltage - Output (Max) | -37V |
| Voltage Dropout (Max) | - |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 77dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK-3 |
| ROHS |  |
The LM337D2TR4G from onsemi is a versatile adjustable negative linear regulator delivering up to 1.5A. With an output range down to -37V and excellent 77dB ripple rejection, it provides clean, stable power for audio, industrial, and instrumentation applications. The D2PAK-3 package supports efficient thermal management.
- High Output Current: 1.5A capability supports demanding loads without external pass transistors.
- Excellent Ripple Rejection: 77dB at 120Hz ensures clean output for sensitive analog circuits.
- Wide Adjustable Range: Output down to -37V provides flexibility for various negative rail requirements.
- Robust Package: D2PAK-3 enables effective heat sinking for reliable operation.
Negative Power Supply for Op-Amps
Generate a clean -5V to -15V rail for precision operational amplifiers in audio or instrumentation circuits. The 77dB PSRR at 120Hz effectively rejects mains hum.
Adjustable Negative Bias Supply
Use the adjustable output down to -37V to bias avalanche photodiodes (APDs) or tune the operating point of RF amplifiers and mixers.
LCD Contrast Control
Provide a stable negative voltage for LCD VCOM or contrast adjustment in industrial displays, ensuring consistent image quality over temperature.
Industrial Sensor Power
Power negative-rail sensors and transducers in process control systems. The 1.5A capability supports multiple sensors from a single regulator.
Audio Preamplifier Supply
Create a symmetric supply with a positive LDO for high-end audio preamps. The low noise and high PSRR preserve signal fidelity.
Test & Measurement Equipment
Use as a programmable negative reference in benchtop instruments. The D2PAK package allows efficient heat dissipation for continuous operation.
- Q: What is the output voltage range of the LM337D2TR4G?
- A: The LM337D2TR4G provides an adjustable negative output voltage down to -37V.
- Q: What is the maximum output current?
- A: This regulator can deliver up to 1.5A of output current.
- Q: What is the input voltage range?
- A: The input voltage range extends from -1.2V to -40V (absolute maximum).
- Q: What is the dropout voltage?
- A: Dropout voltage is not specified in the provided data; refer to the datasheet for typical values.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What package is available?
- A: It comes in a D2PAK-3 (TO-263) surface-mount package.
